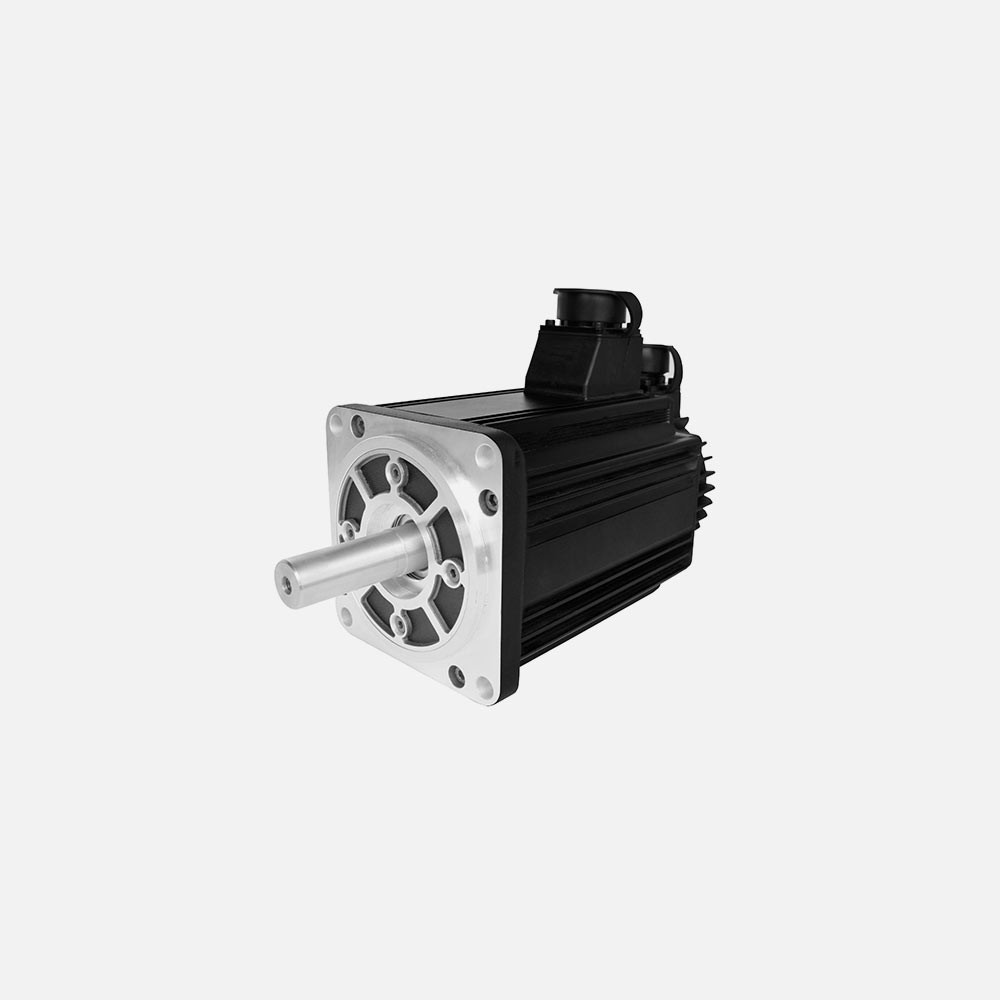

SERVO MOTOR
| PERFORMANCE DATA |
| Model | Poles | Rated voltage | Rated power | Rated torque | Rated speed | Maximum Toque | Rated Current | Maximum Current | Torque Coefficient |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 110S02030A3EMRD | 5P | 311/220 | 600 | 2 | 3000 | 6 | 2.5 | 7.5 | 0.91 |
| 110S04030A3EMRD | 5P | 311/220 | 1200 | 4 | 3000 | 12 | 5 | 15 | 0.91 |
| 110S06030A3EMRD | 5P | 311/220 | 1800 | 6 | 3000 | 18 | 6 | 18 | 0.91 |
| Model | Rotor Intertia | Back E.M.F | Dielectric Strength | Safety Class | Encoder Type | Environment | Weight | Length |
| Units | Kg*cm² | V/Krpm | / | / | / | / | Kg | mm |
| 110S02030A3EMRD | 3.1 | 55 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 4.5 | 127mm |
| 110S04030A3EMRD | 5.4 | 55 | F | IP64 | 5.5 | 157mm | ||
| 110S06030A3EMRD | 6.3 | 5 | F | IP64 | 6.1 | 187mm |
| OUTLINE MAP |
