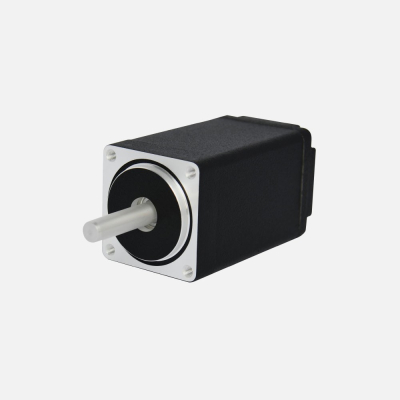

HYBRID STEPPER MOTOR
| GENERAL SPECIFICATION |
| Attributes | Units | Value |
| Number Of Phase | 2 | |
| Step Angle Deg | 1.8° | |
| Step Angle Accuracy | ±5% ( full step, no load ) | |
| Shaft Radiall Play | 0.02mm max ( 450g load ) | |
| Shaft Axial Play | 0.08mm max ( 450g load ) | |
| Max. Radial Force | 20N ( 20mm from the flange ) | |
| Max. Axial Force | 2N | |
| Insulation Resistance | 100MΩ min, 500VDC | |
| Dielectric Strength | 500VAC for one minute 5mA | |
| Temperature Rise | 80℃ max ( rated current, 2 phase on ) | |
| Ambient Temperature | -20℃ ~ +50℃ | |
Insulation Class | B (130℃) | |
| Protection Class | IP40 | |
| Motor Diamete | mm | 20 |
| Length | mm | 26 |
| Resistance | Ω±10%@20℃ | 20 |
| Inductance | mH±20%@100Hz/1Vrms | 5 |
| Current | A | 0.2 |
| Holding Torque | N.cm | 1.2 |
| Lead Wires / Pins | 4 | |
| Rotor Inetia | g.cm² | 2 |
| Weight | kg | 0.1 |
