STEPPER LINEAR ACTUATOR
Single-Stack Stepper Motor |

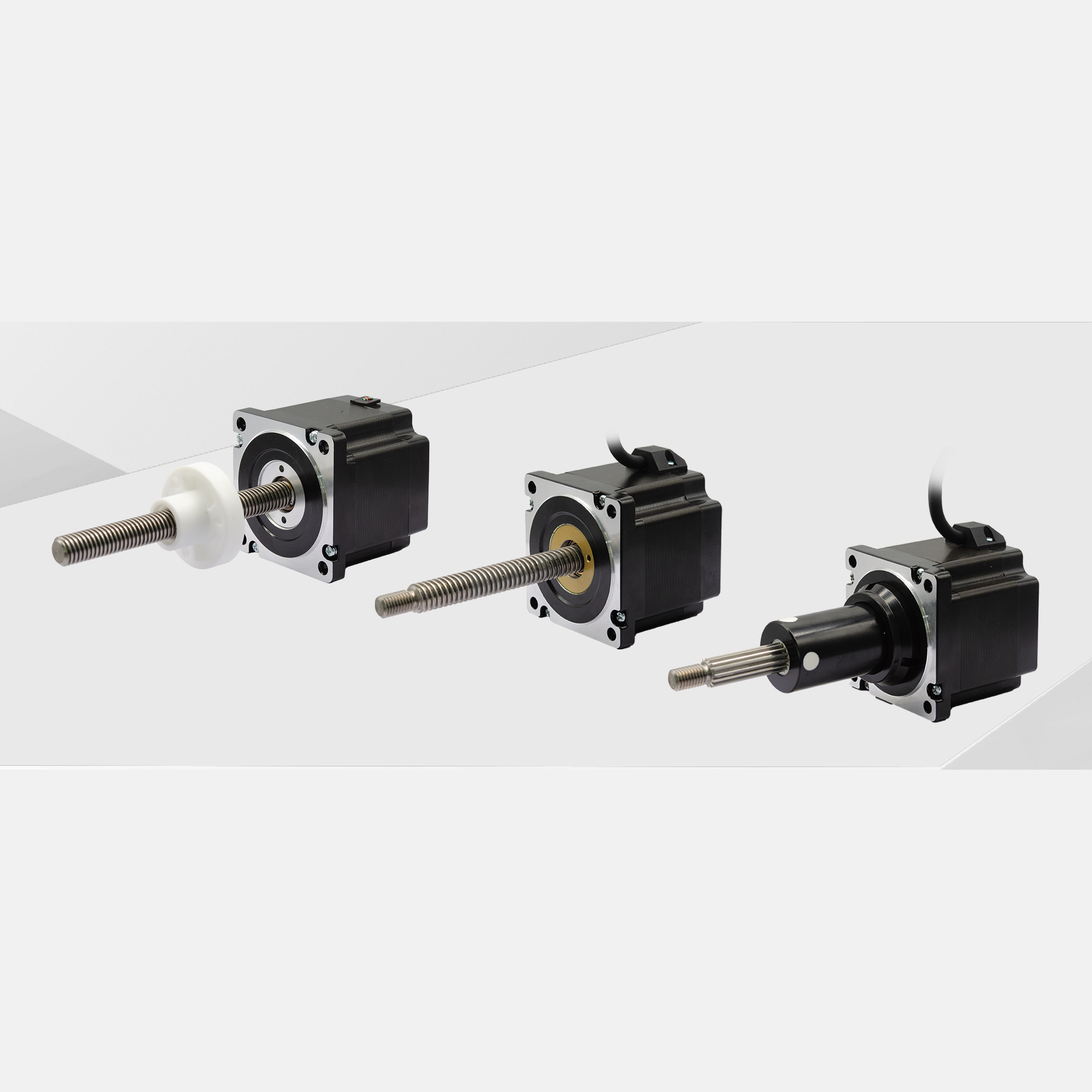

| 86-Series Hybrid Stepper Linear Actuator (1.8° Step Angle) | |||
| Motor Type | External | 86E2078 | |
| Non-Captive | 86N2078 | ||
| Captive | 86C2078 | ||
| Wiring | Bipolar | ||
| Parameter | Value 1 | Value 2 | Value 3 |
| Rated Voltage | 2.85VDC | 5VDC | 12VDC |
| Rated Current | 5.47A | 3.12A | 1.3A |
| Resistance/Phase | 0.52Ω | 1.6Ω | 9.23Ω |
| Inductance/Phase | 2.86mH | 8.8mH | 51mH |
| Power Input | 31.2W | ||
| rotor inertia | 1760gcm2 | ||
| Temperature Rise | 75℃ | ||
| Insulation Class | B-Class (F-Class optional) | ||
| Weight | 2.3KG | ||
| Insulation Resistance | 50MΩ | ||
Common Lead Screws and Leads |
| Screw Diameter(mm) | Lead(mm) | Lead code | Step Length(mm) |
| Φ15.875 | 2.54 | K0 | 0.0127 |
| Φ15.875 | 3.175 | L0 | 0.0254 |
| Φ15.875 | 5.08 | R0 | 0.0079375 |
| Φ15.875 | 6.35 | S0 | 0.03175 |
| Φ15.875 | 12.7 | Y0 | 0.0635 |
| Φ15.875 | 25.4 | Z0 | 0.127 |
Motor Outline Dimension Drawing |

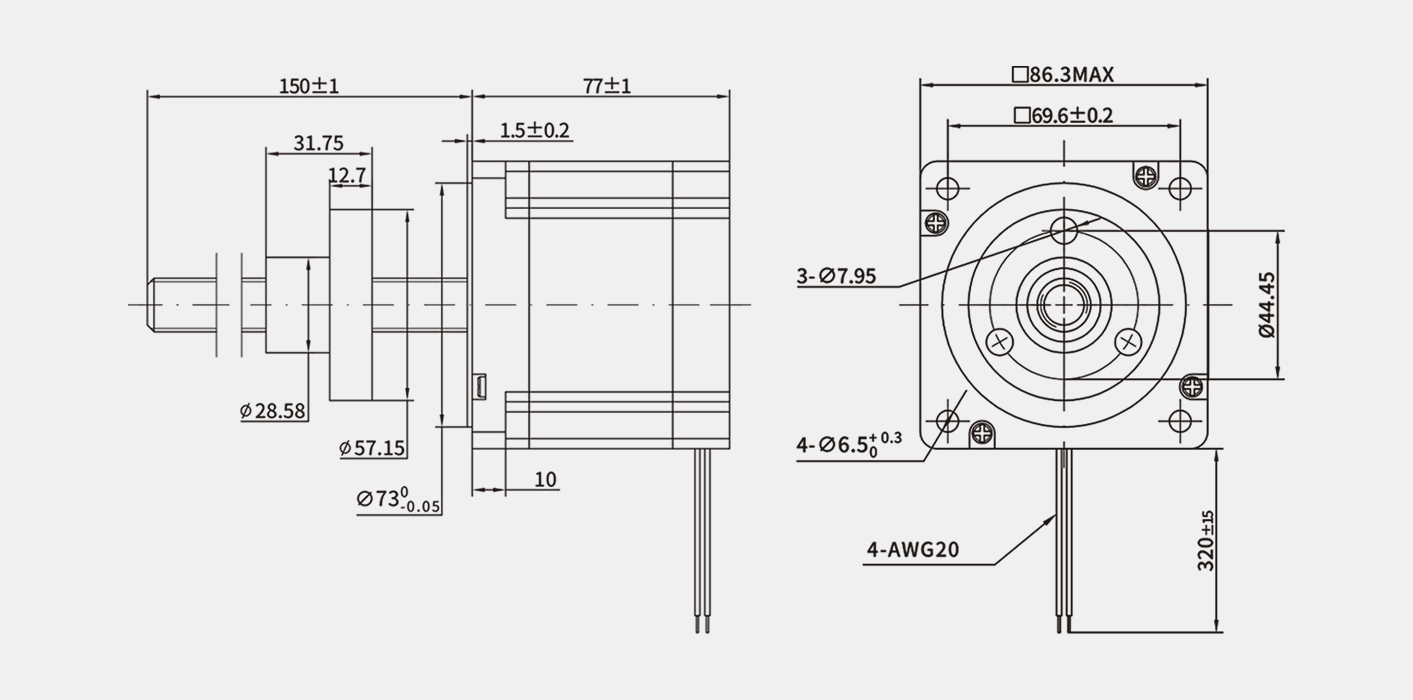

EXTERNAL |

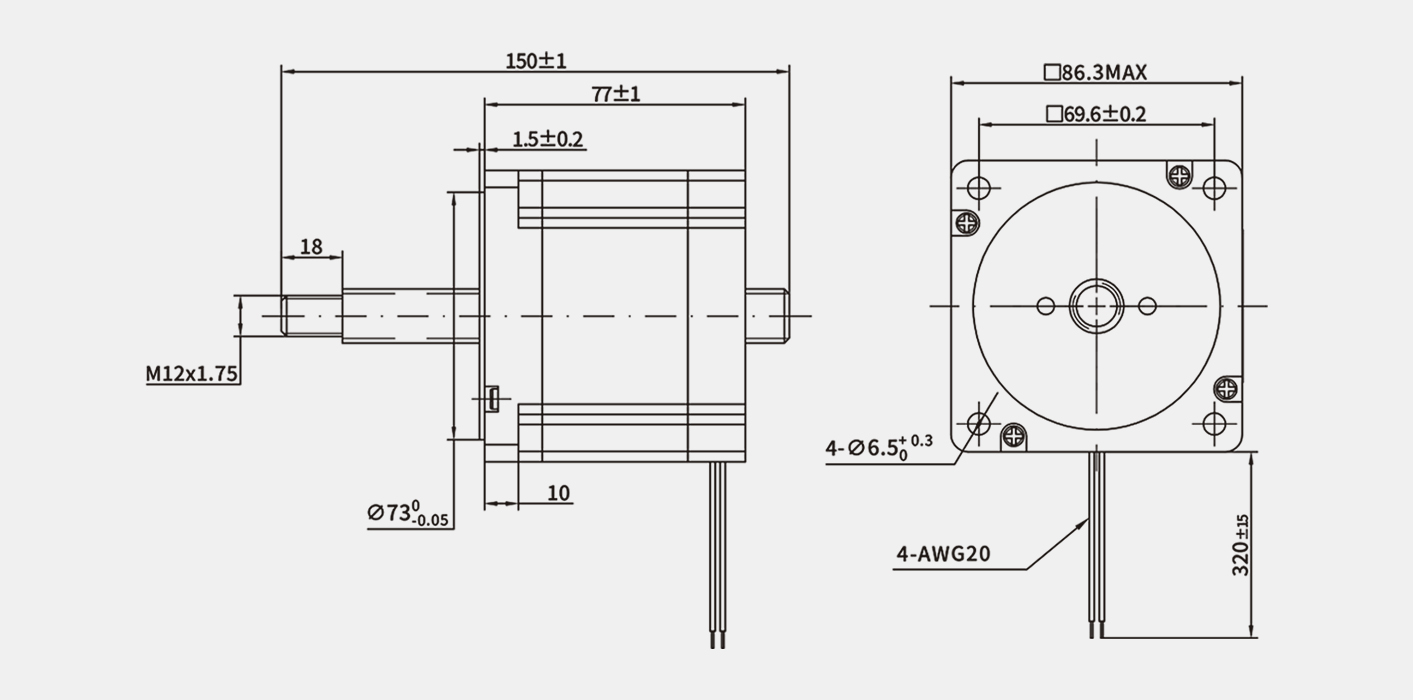

NON-CAPTIVE |

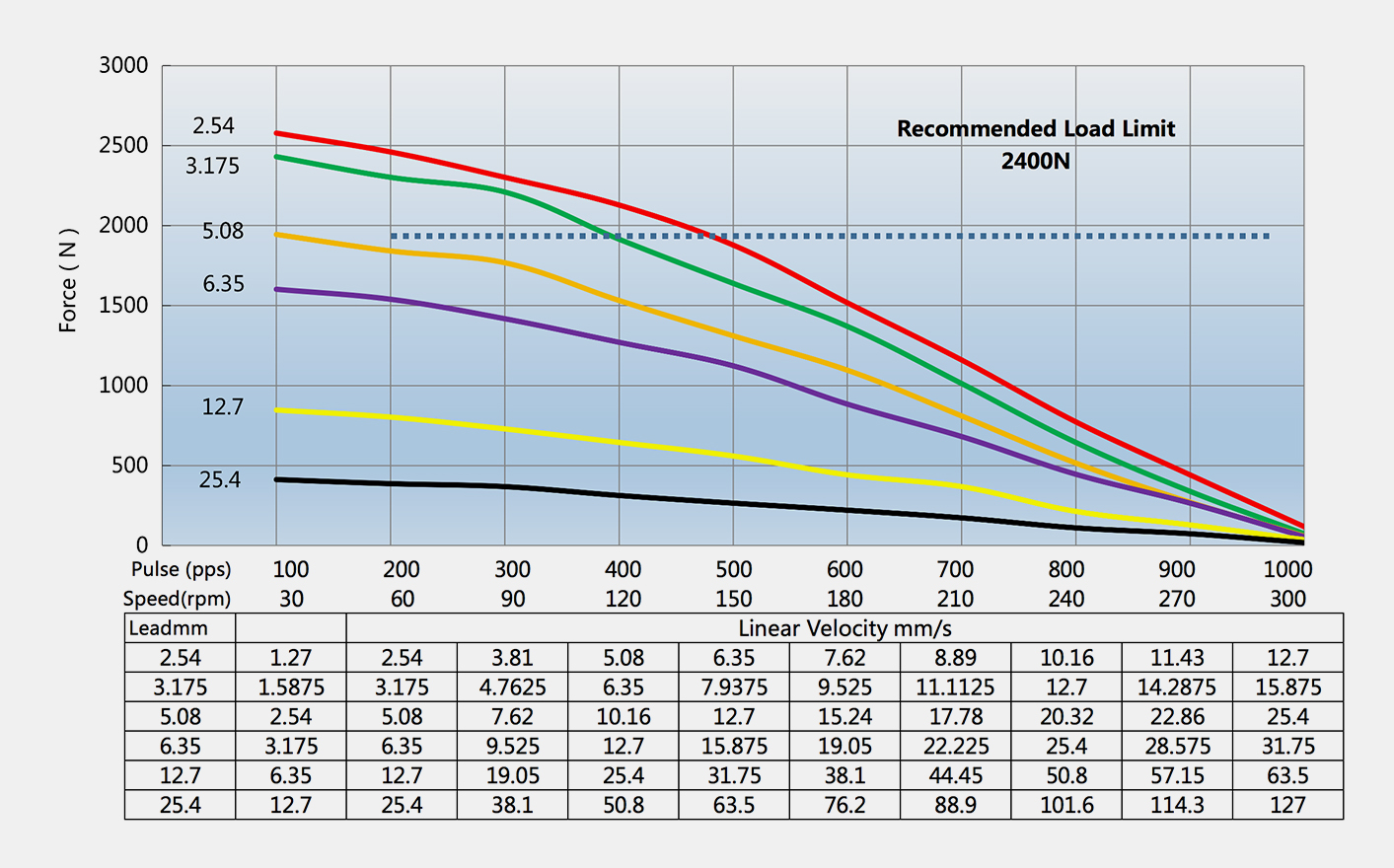

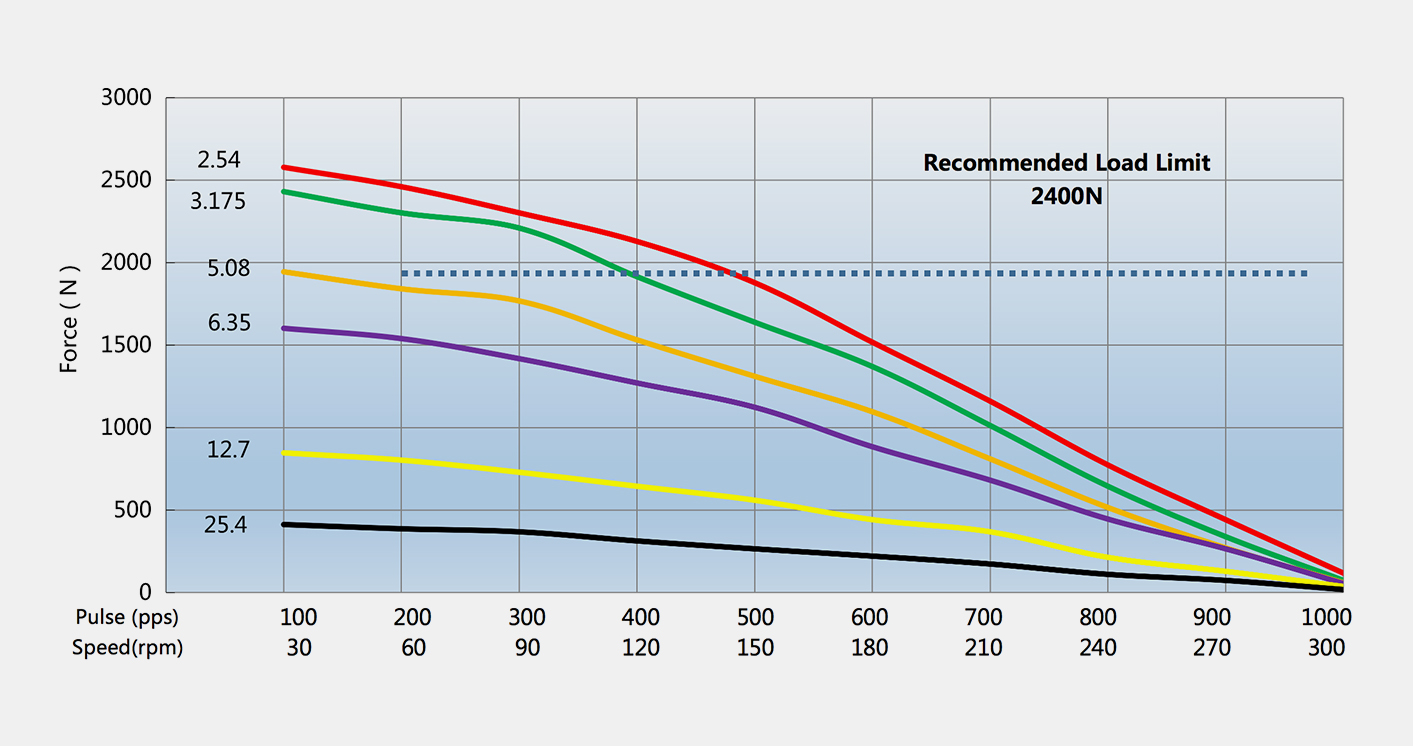

Linear Velocity vs. Force Curve |
Series 86 (78mm Body, Bipolar)Pulse Frequency vs. Force Curve(o15.88mm Lead Screw) |
| Lead(mm) | Linear Velocity mm/s | |||||||||
| 2.54 | 1.27 | 2.54 | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 | 12.7 |
| 3.175 | 1.5875 | 3.175 | 4.7625 | 6.35 | 7.9375 | 9.525 | 11.1125 | 12.7 | 14.2875 | 15.875 |
| 5.08 | 2.54 | 5.08 | 7.62 | 10.16 | 12.7 | 15.24 | 17.78 | 20.32 | 22.86 | 25.4 |
| 6.35 | 3.175 | 6.35 | 9.525 | 12.7 | 15.875 | 19.05 | 22.225 | 25.4 | 28.575 | 31.75 |
| 12.7 | 6.35 | 12.7 | 19.05 | 25.4 | 31.75 | 38.1 | 44.45 | 50.8 | 57.15 | 63.5 |
| 25.4 | 12.7 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 114.3 | 127 |
*Test Conditions: Constant current chopper drive, no acceleration, 2 microsteps, drive voltage 40v.
