New frameless motor made by 3X Motion

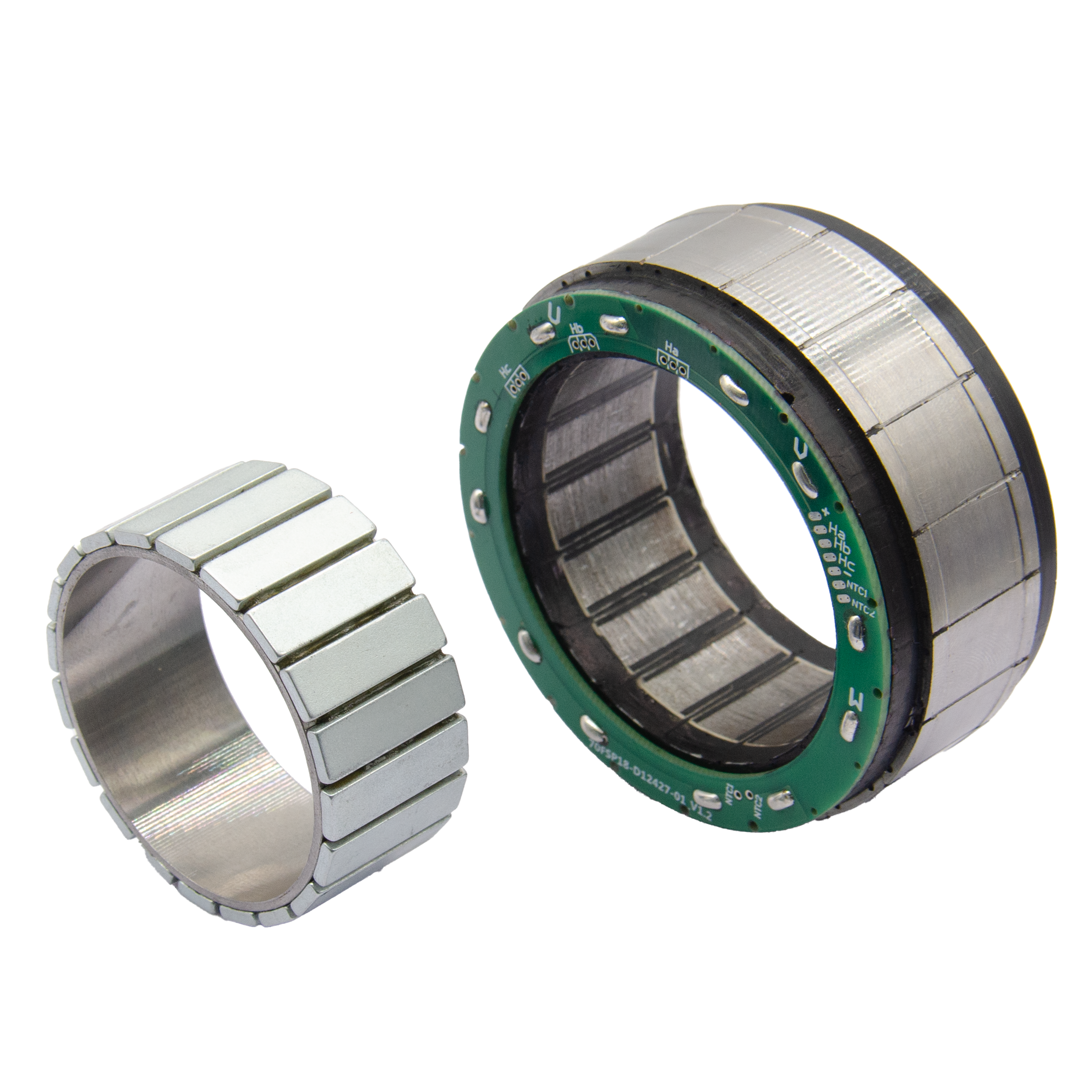

Frameless motor is the part of the traditional motor used to provide torque and speed, and can be installed directly into the whole system. The system's own bearings will be used to support the rotor. Frameless motors have no bearings, housing or end covers, only two parts: the rotor and the stator.
The structure of frameless motor can reduce the complexity of whole system design and reduce the risk of failure which will ultimately reduce the overall cost of the system.
Frameless motors— 3X Motion's own R&D products, are BLDC frameless actuators featuring superior torque density, which enables packing impressive power into a compact space, while minimizing friction-induced power losses and ensuring noise.With low cogging torque, these products provide smooth rotation without jerkiness.
Product information:
l Diameter: 120 mm
l Voltage: 24V
l Rated torque: 1.6 N.m
l Rated speed: 1750 rpm
l Rated current: 19 A
l Rated power: 290 W
Advantages：
l Directly connected to the system. Built-in connection reduces the overall size. Optimize performance.
l Strong mechanical structure (Vacuum paint process).
l High process performance (Automatic equipment, high consistency).
l Low noise
l Thermistor overload protection.
l Reliable packaging protection (Esd packing, vacuum packing, etc).
l RoHS, CE certificate.
l UL certificate (if needed)
Application：
l Breathing machine, high noise requirement (<35dB).
l Pump industry
l Robert automatic industry ( big torque, high efficiency, space saved)
Customized design：

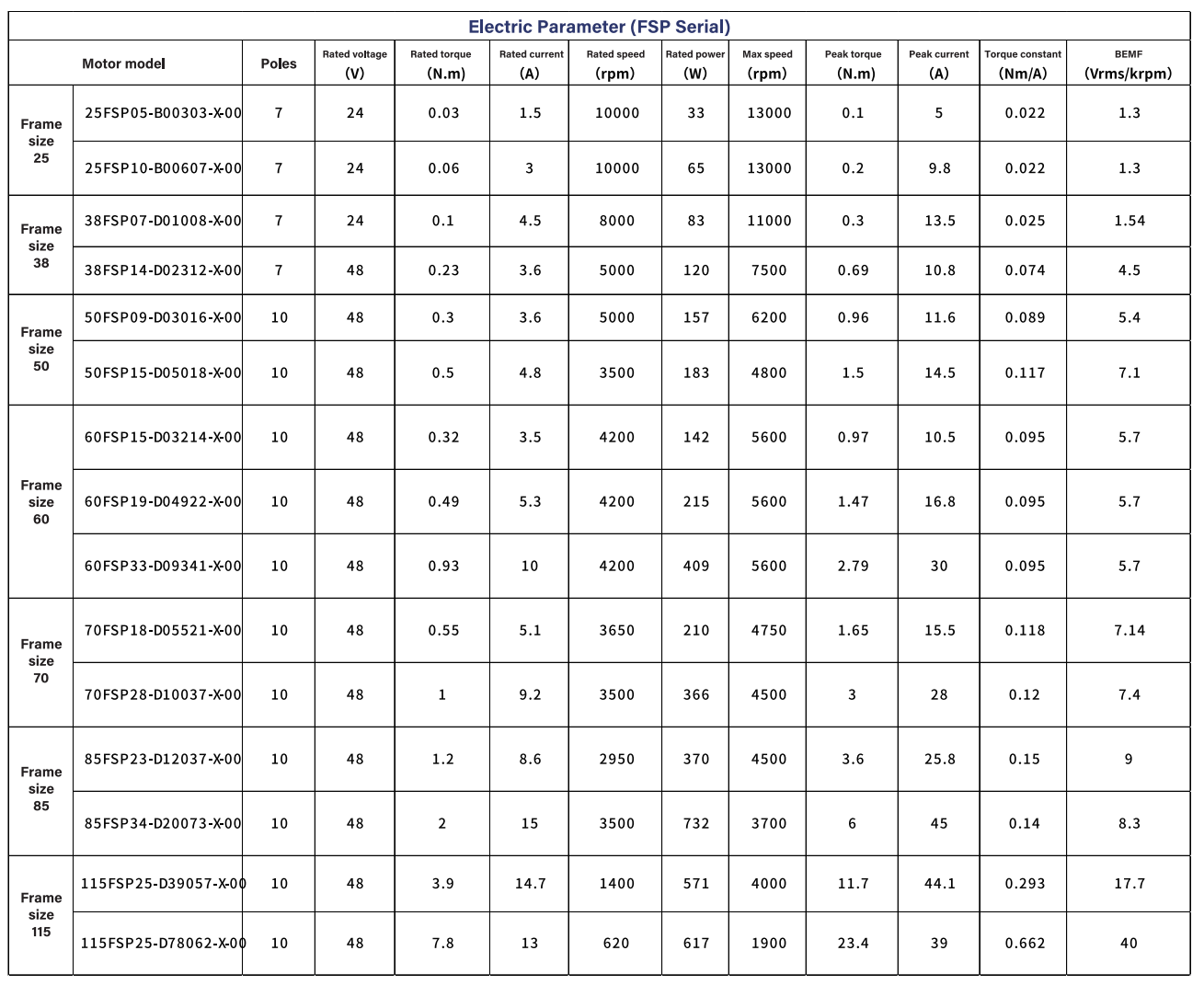

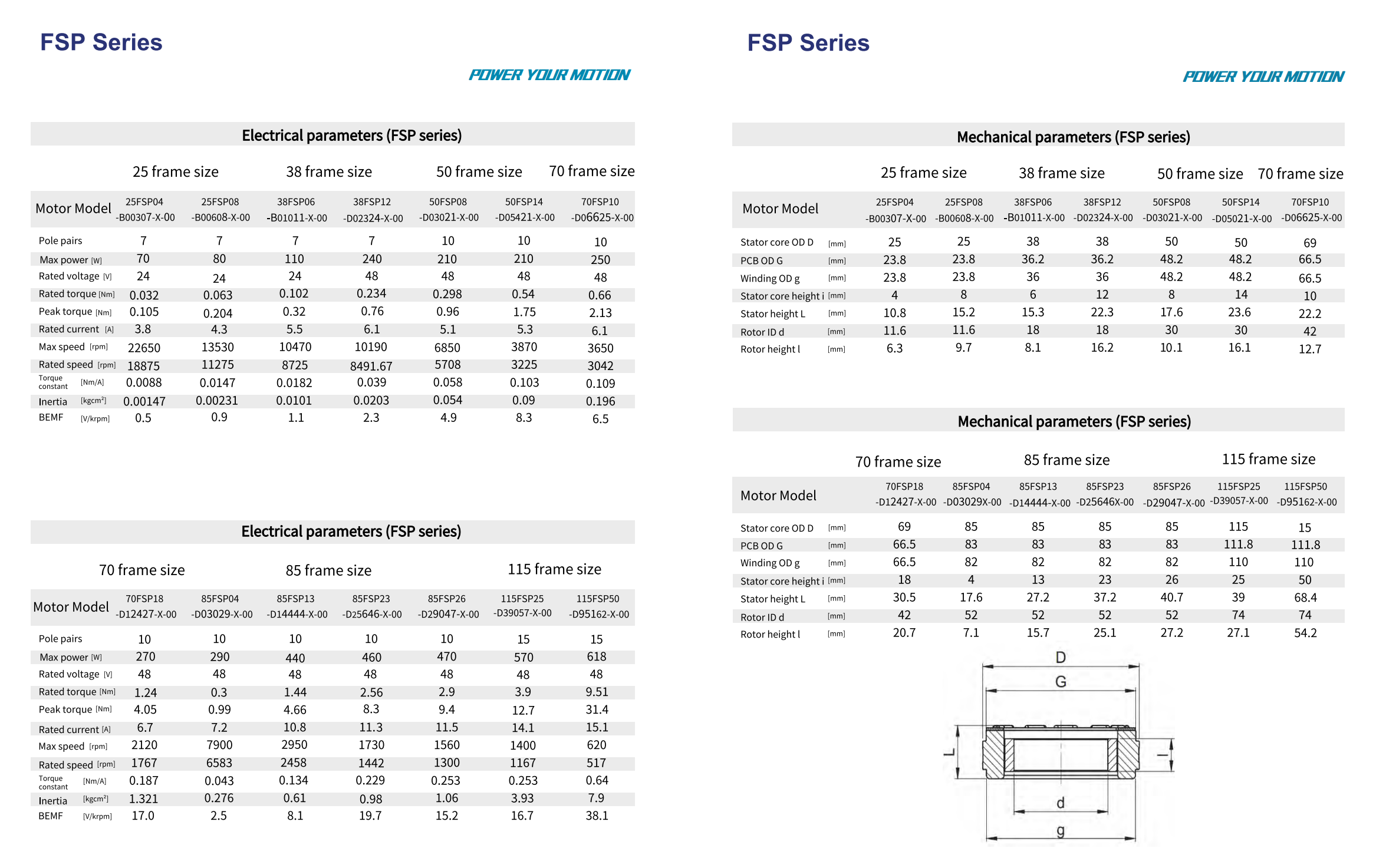

Currently, There are a variety of standard frameless motors (42mm~120mm).
By adjusting the wire, winding, magnetic steel, etc., our company can provide customized designs to achieve different mechanical sizes and performance.
