STEPPER LINEAR ACTUATOR
Single-Stack Stepper Motor |
| 86-Series Stepper Ball Screw Actuator (1.8° Step Angle) | |||
| Wiring | Bipolar | ||
| Parameter | Value 1 | Value 2 | Value 3 |
| Rated Voltage | 2.85VDC | 5VDC | 0 |
| Rated Current | 5.47A | 3.12A | 1.3A |
| Resistance/Phase | 0.52Ω | 1.6Ω | 9.23Ω |
| Inductance/Phase | 2.86mH | 8.8mH | 51mH |
| Power Input | 31.2W | ||
| Temperature Rise | 75℃ | ||
| Insulation Class | B-Class (F-Class optional) | ||
| Insulation Resistance | 50MΩ | ||
Motor Outline Dimension Drawing |
Nut Dimension Drawing |

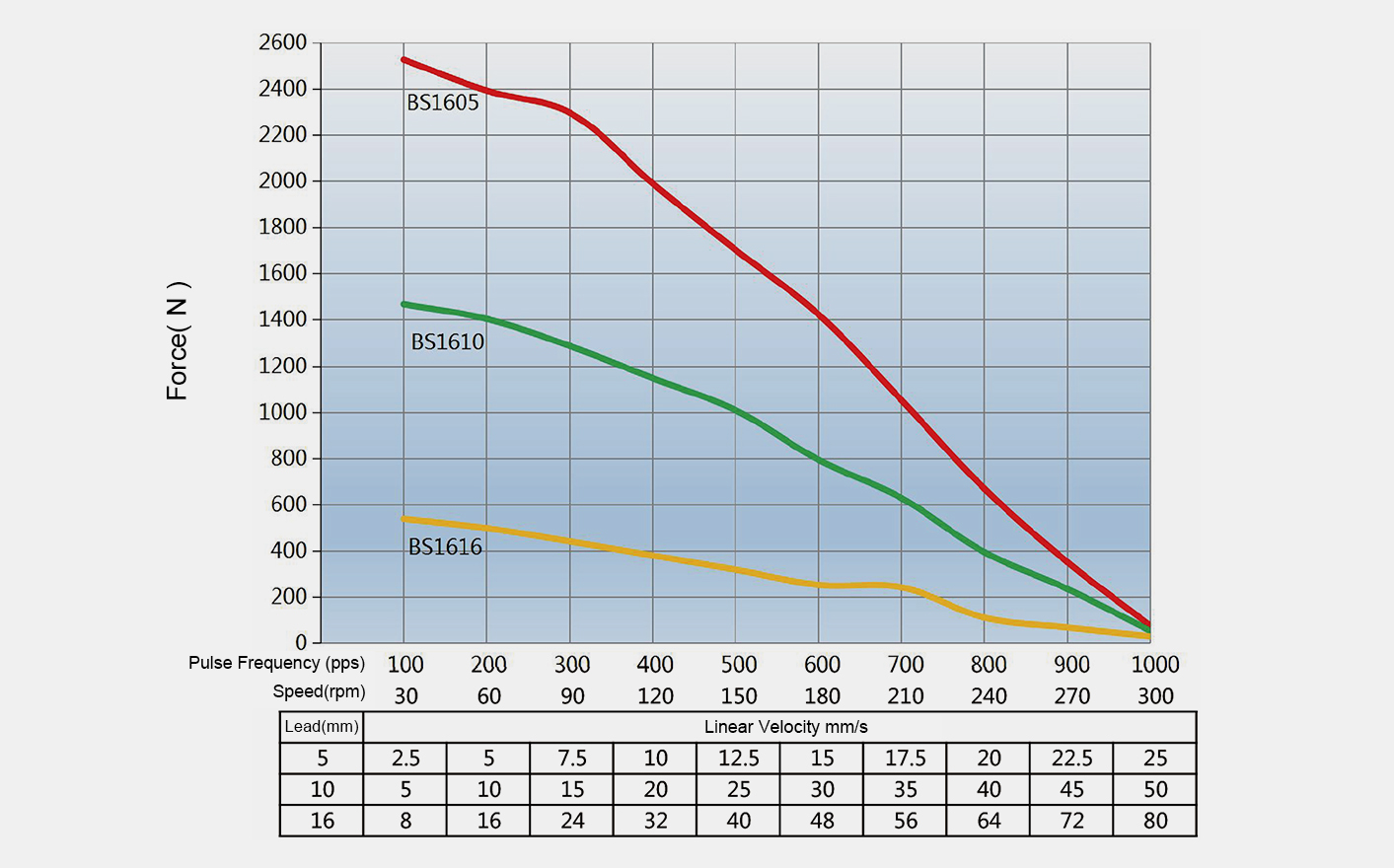

Linear Velocity vs. Force Curve |
Series 86 (78mm Body, Bipolar)Pulse Frequency vs. Force Curve |
*Test Conditions: Constant current drive, no acceleration, 2 subdivisions, drive voltage 40V.
