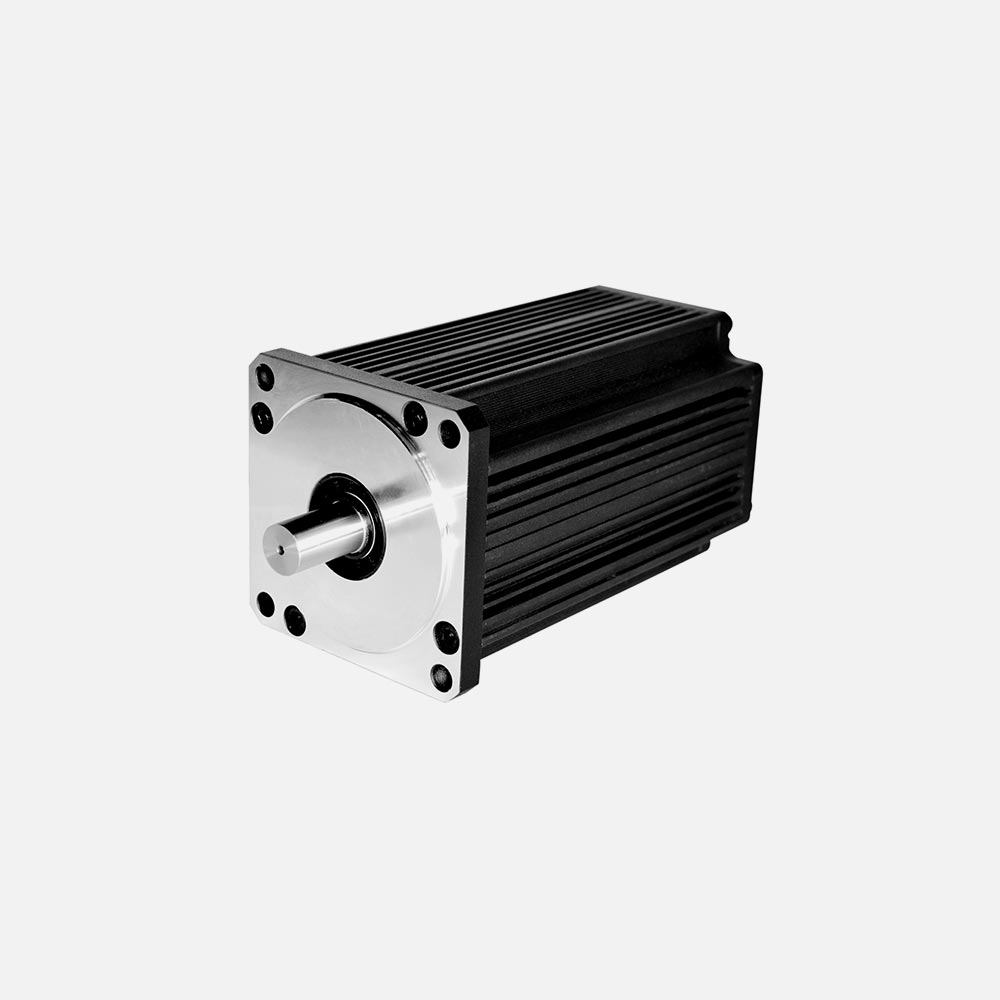

110BSA Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.08mm /450g
Max. radial force: 220N @ 20mm from the flange
Max. axial force: 60N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
110BSA125I030X-018331030002.226256
110BSA155I030X-0131030004.84125012
110BSA185I030X-0131030007.1646188517.91
110BSA210I030X-0131030008.5927.16224921.48


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
110BSA125I030X-0180.7754.81.912548~3101000~ 30004.8
110BSA155I030X-0114.70.7754.83.31555.2
110BSA185I030X-01260.68954.851855.5
110BSA210I030X-01310.68954.85.92106


OUTLINE MAP
