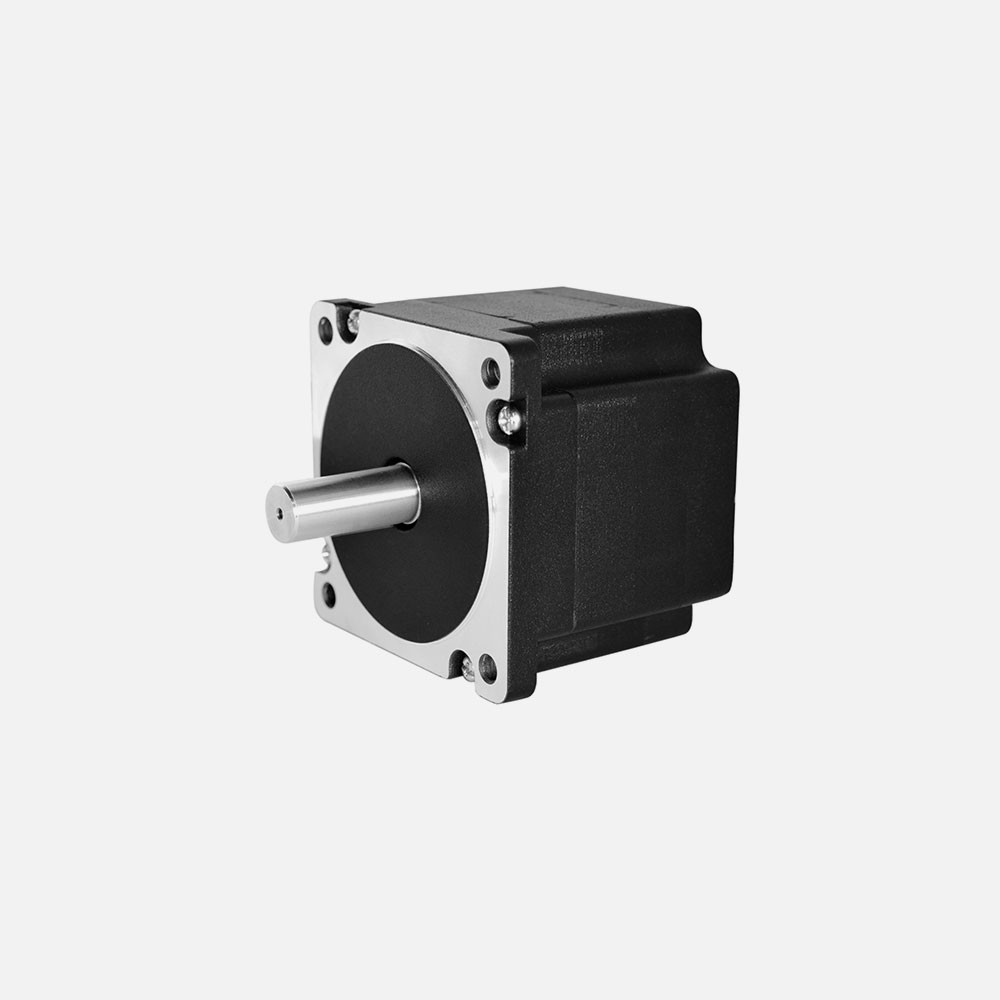

86BSA Series (8Poles 8)

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.08mm /400g
Max. radial force: 220N @ 20mm from the flange
Max. axial force: 60N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
86BSA058D010X-01834810000.420.35371.05
86BSA058D030X-0130000.420.351101.05
86BSA071D010X-0110000.840.7732.1
86BSA071D030X-0130000.840.72202.1
86BSA098D010X-0110001.681.41474.2
86BSA098D030X-0130001.681.44404.2
86BSA125D010X-0110002.22.12206.3
86BSA125D030X-0130002.22.16606.3


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
86BSA058D010X-012.860.32434.280.45812~3101000~ 30001.5
86BSA058D030X-018.60.1212.630.4581.5
86BSA071D010X-015.70.32434.280.8711.9
86BSA071D030X-0117.10.1212.630.8711.9
86BSA098D010X-0111.40.32434.281.6982.6
86BSA098D030X-0134.30.1212.631.6982.6
86BSA125D010X-0117.20.32434.282.41254
86BSA125D030X-0151.50.1212.632.41254


OUTLINE MAP
