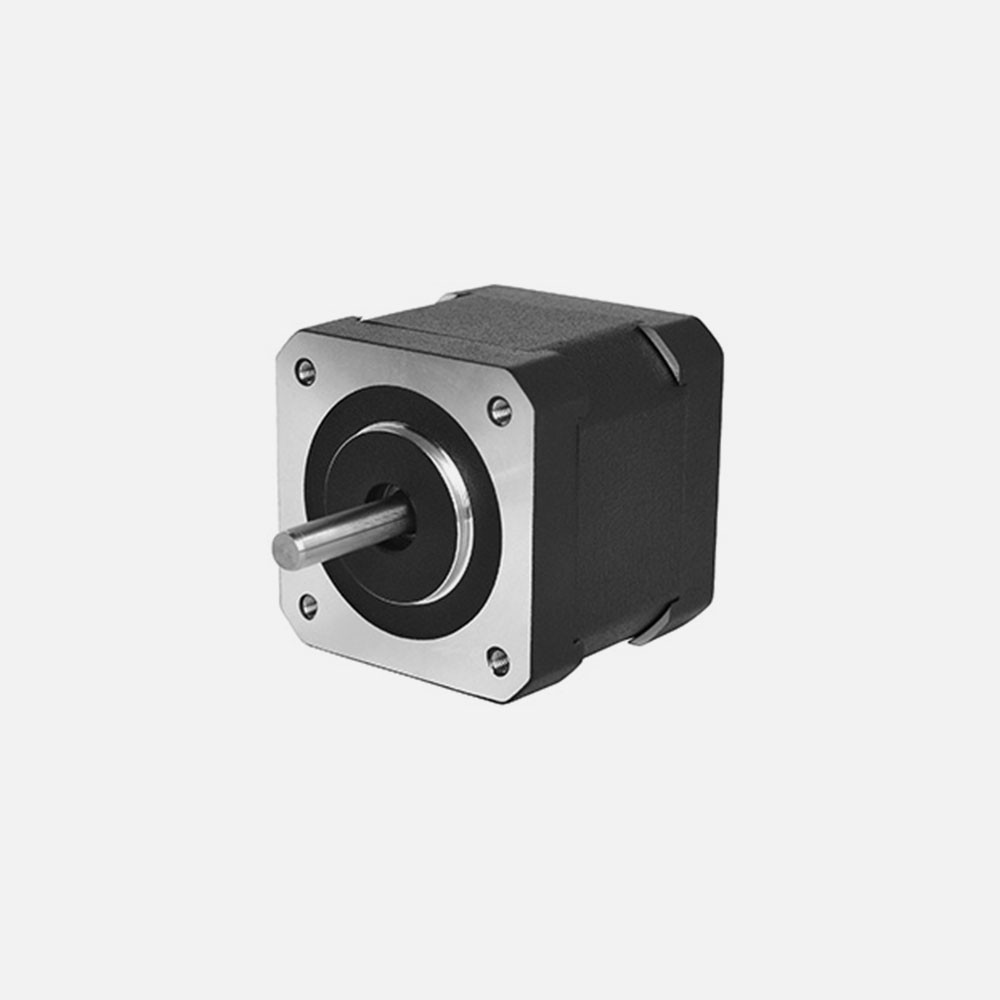

42HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 28N ( 20mm from the flange )
Max. Axial Force: 10N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
42HS028DF250X-01281.8°2.51.23244230.18
42HS034DF130X-01341.8°1.31.72.21404380.25
42HS040DF090X-01401.8°0.92.11.89364580.3
42HS044DF80JX-01441.8°800.2520404750.34
42HS045DS650X-01451.8°6.50.53.25256790.34
42HS046DF330X-01461.8°3.31.75.61504820.36
42HS048DF120X-01481.8°1.21.72.04224850.38
42HS050DF230X-01501.8°2.31.22.76404880.4
42HS058DF220X-01581.8°2.21.73.746741120.48
42HS060DE840X-01601.8°8.418.47081150.5
42HS061DF460X-01611.8°4.61.35.988341150.5
