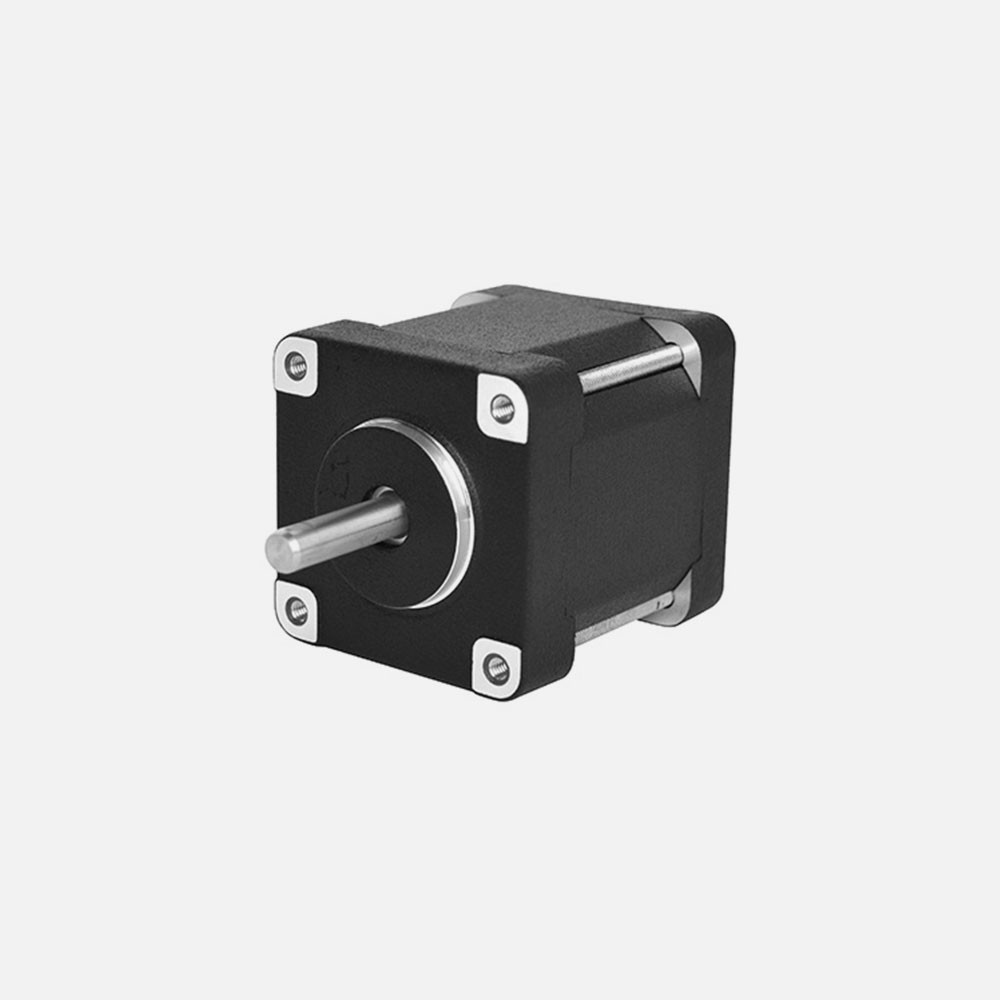

39HSM Series (0.9 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 28N ( 20mm from the flange )
Max. Axial Force: 10N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
39HS020MF10JX-01200.9°100.5584100.13
39HS022MF300X-01220.9°31.23.68.24120.135
39HS024MF23JX-01240.9°230.4811144130.14
39HS026MF220X-01260.9°2.212.2124140.13
39HS027MF11JX-01270.9°110.55.5134140.13
39HS033MF12JX-01330.9°120.67.2204170.18
39HS037MS26JX-01370.9°260.410.4186270.22
39HS039MF14JX-01390.9°140.57204290.26


OUTLINE MAP
