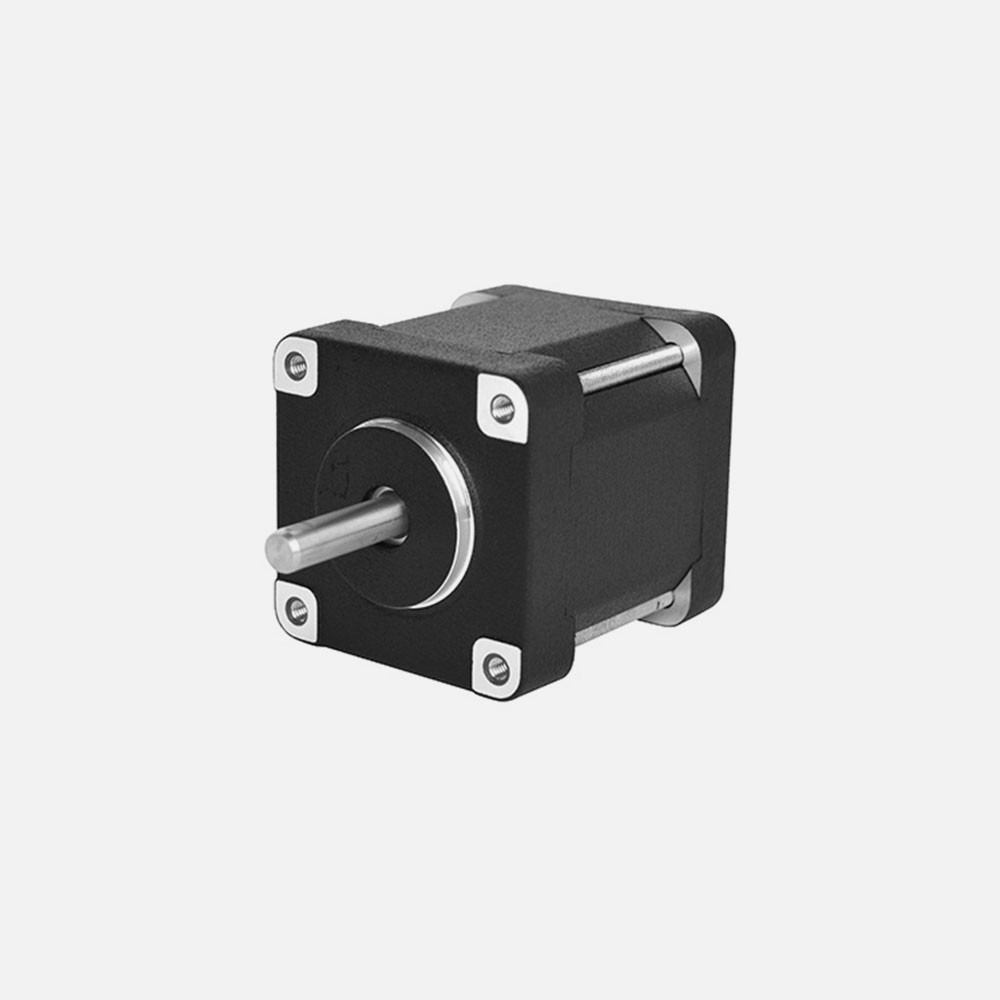

39HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 28N ( 20mm from the flange )
Max. Axial Force: 10N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
39HS020DF300X-01201.8°31.23.694110.13
39HS022DF910X-01221.8°9.10.5558.24120.135
39HS024DF440X-01241.8°4.40.93.9654140.14
39HS026DF10JX-01261.8°100.66154150.145
39HS027DS30JX-01271.8°300.412156160.15
39HS033DF700X-01331.8°70.654.55174200.18
39HS037DS750X-01371.8°7.50.86206270.22
39HS039DF400X-01391.8°41.14.4224320.24
39HS044DF40JX-01441.8°400.312284350.27


OUTLINE MAP
