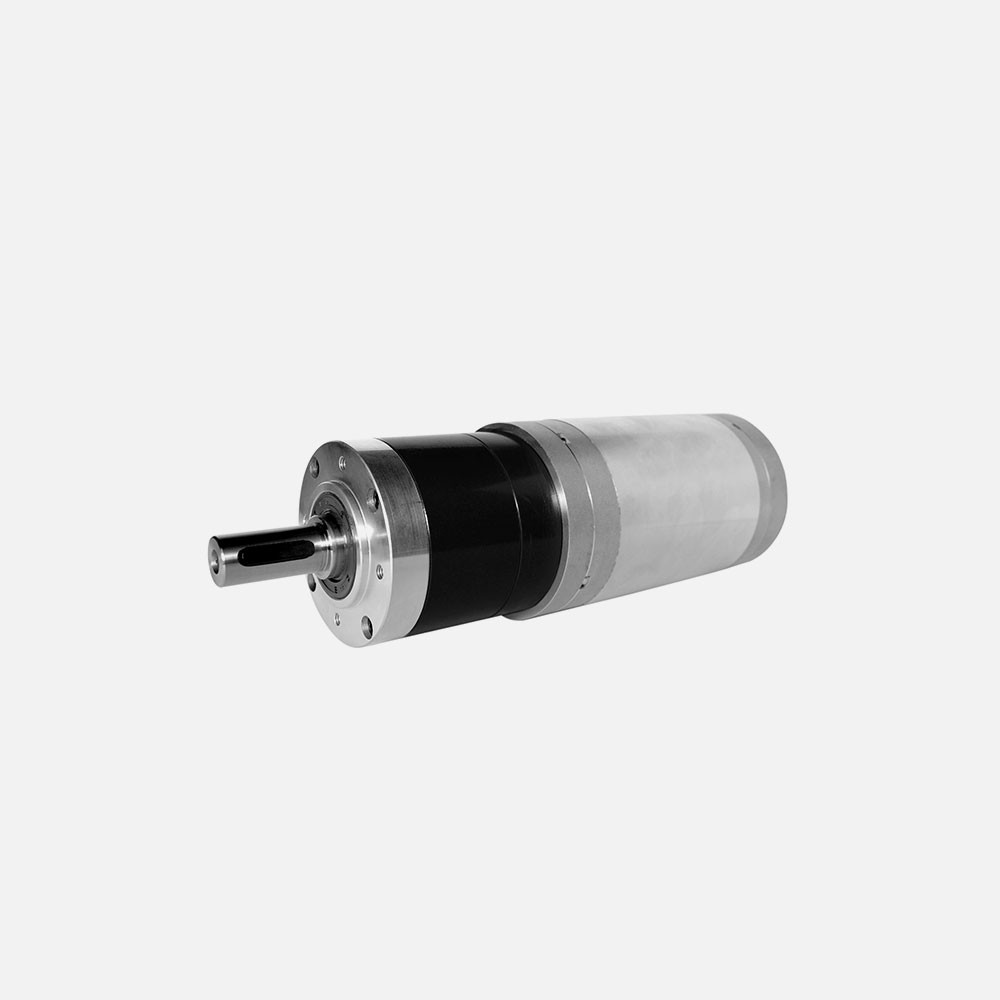

80BSA Series (big torque)

   GENERAL SPECIFICATION

Voltage: 48 VDC
Phase: 3
Poles: 4
Line to line resistance: 0.56±10%ohms
Line to line inductance: 1.187±20%mH
Rated current: 20.5A
Rated output power: 691W
No-load speed: 4000 rpm
Class insulation: B
Gear Ratio: 1:33.92
Output torque: 60 N.m
Output speed: 88.5 rpm

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
80BYA122D030C-02834830002.642.26916.6


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
80BYA122D030C-0261.50.1074.241.8224248~3101000~30003.2


OUTLINE MAP
