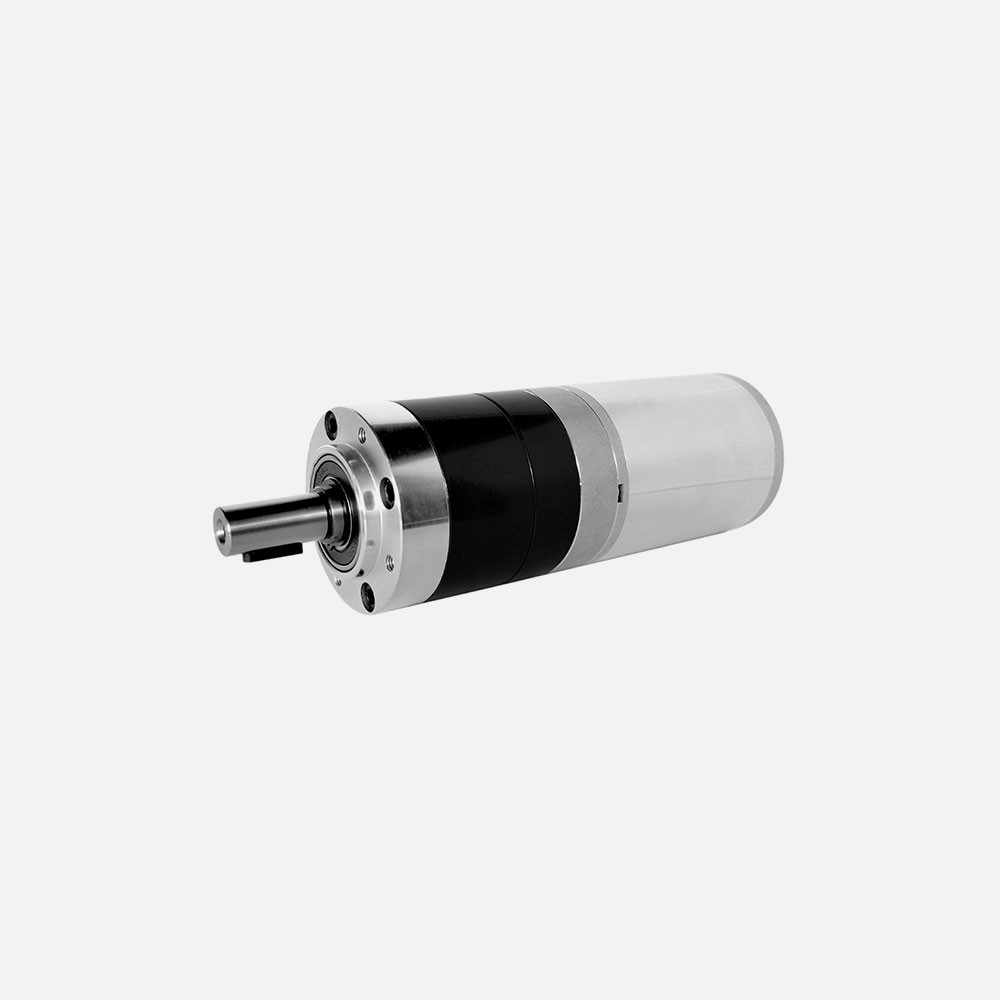

60BYA Series

   GENERAL SPECIFICATION

Voltage: 24 VDC
Phase: 3
Poles: 4
Line to line resistance: 0.15±10%ohms
Line to line inductance: 0.33±20%mH
Rated current: 12A
Rated output power: 200W
No-load speed: 4000 rpm
Class insulation: B
Gear Ratio: 1:44.69
Output torque: 23 N.m
Output speed: 67 rpm

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
60BYA092B030C-02832430000.76440.6372001.911


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
60BYA092B030C-02360.0534.2414016324~481000~30001.8


OUTLINE MAP
