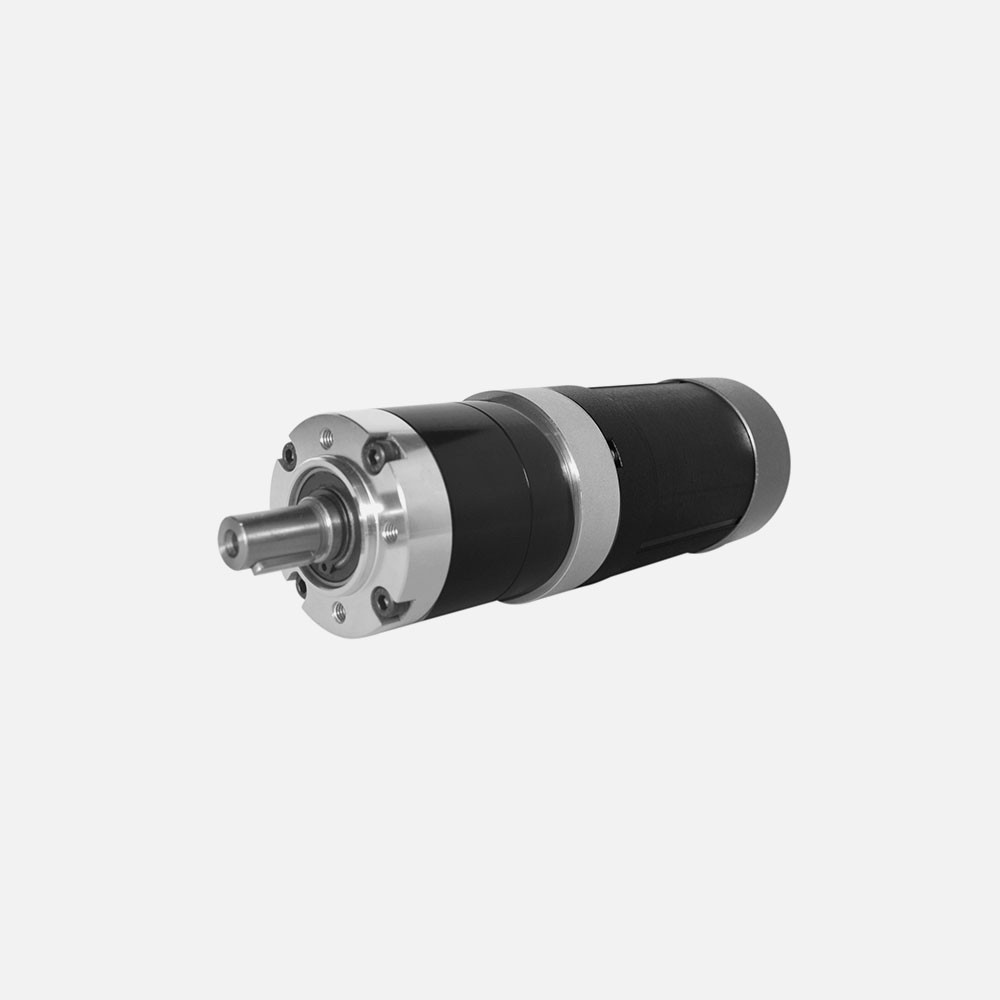

57BYA Series

   GENERAL SPECIFICATION

Voltage: 24 VDC
Phase: 3
Poles: 4
Line to line resistance: 0.25±10%ohms
Line to line inductance: 0.73±20%mH
Rated current: 8.2A
Rated output power: 138W
No-load speed: 4000 rpm
Class insulation: B
Gear Ratio: 1:33.92
Output torque: 12 N.m
Output speed: 88.5 rpm

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
57BYA094B030C-02432430000.5280.441381.32


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
57BYA094B030C-0224.60.0534.24181.516424~481000~30001.5


OUTLINE MAP
