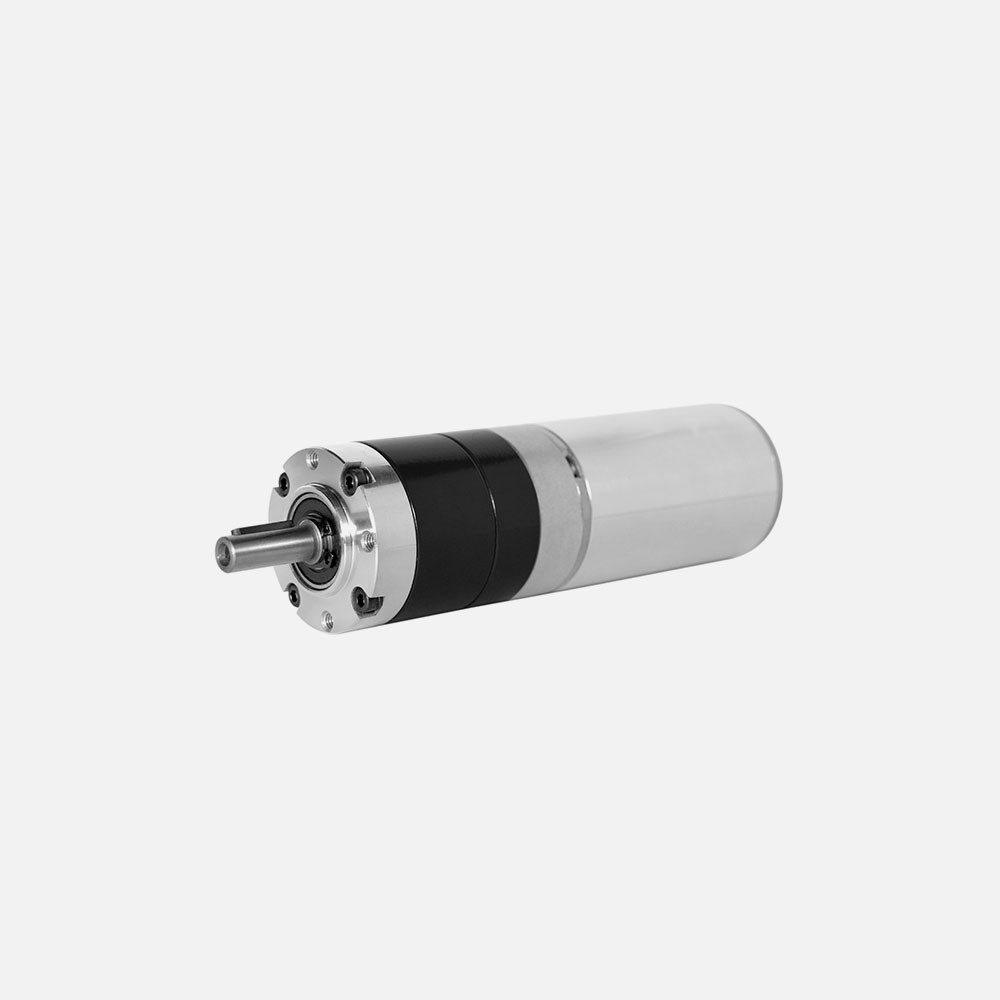

42BYA Series

   GENERAL SPECIFICATION

Voltage: 24 VDC
Phase: 3
Poles: 4
Line to line resistance: 1.45±10%ohms
Line to line inductance: 1.27±20%mH
Rated current: 3.2A
Rated output power: 50W
No-load speed: 4300 rpm
Class insulation: B
Gear Ratio: 1:58.22
Output torque: 7.5 N.m
Output speed: 51.5 rpm

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
42BYA075B030C-02432430000.1920.16500.48


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
42BYA075B030C-029.60.053.94714.613424~481000~30001.0


OUTLINE MAP
