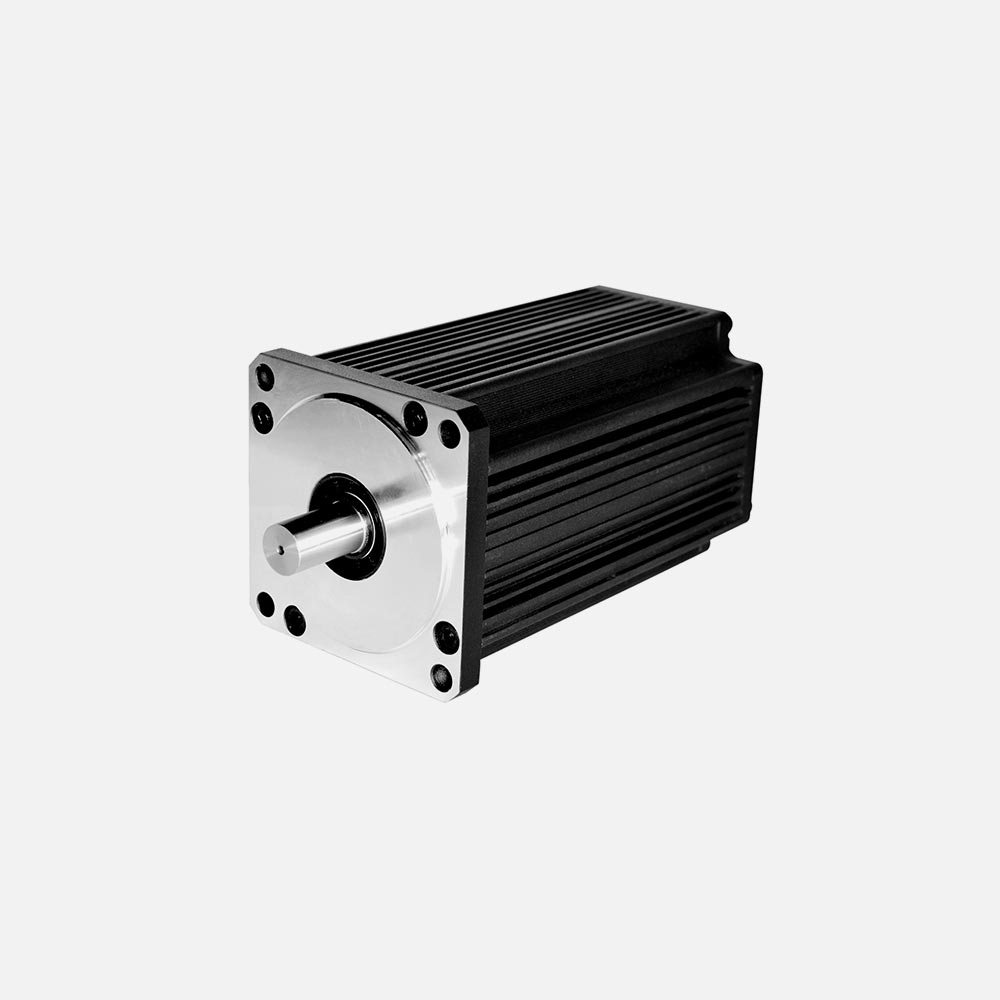

130BSA Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm @460g
End play: 0.08mm @450g
Max. radial force: 220N @ 20mm from the flange
Max. axial force: 60N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
130BSA120D030X-01434830002.82.57857.5
130BSA155I030X-0131030005.55157015


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
130BSA120D030X-01700.0128.932.412048~3101000~ 30005
130BSA155I030X-0121.70.0778.934.81557
