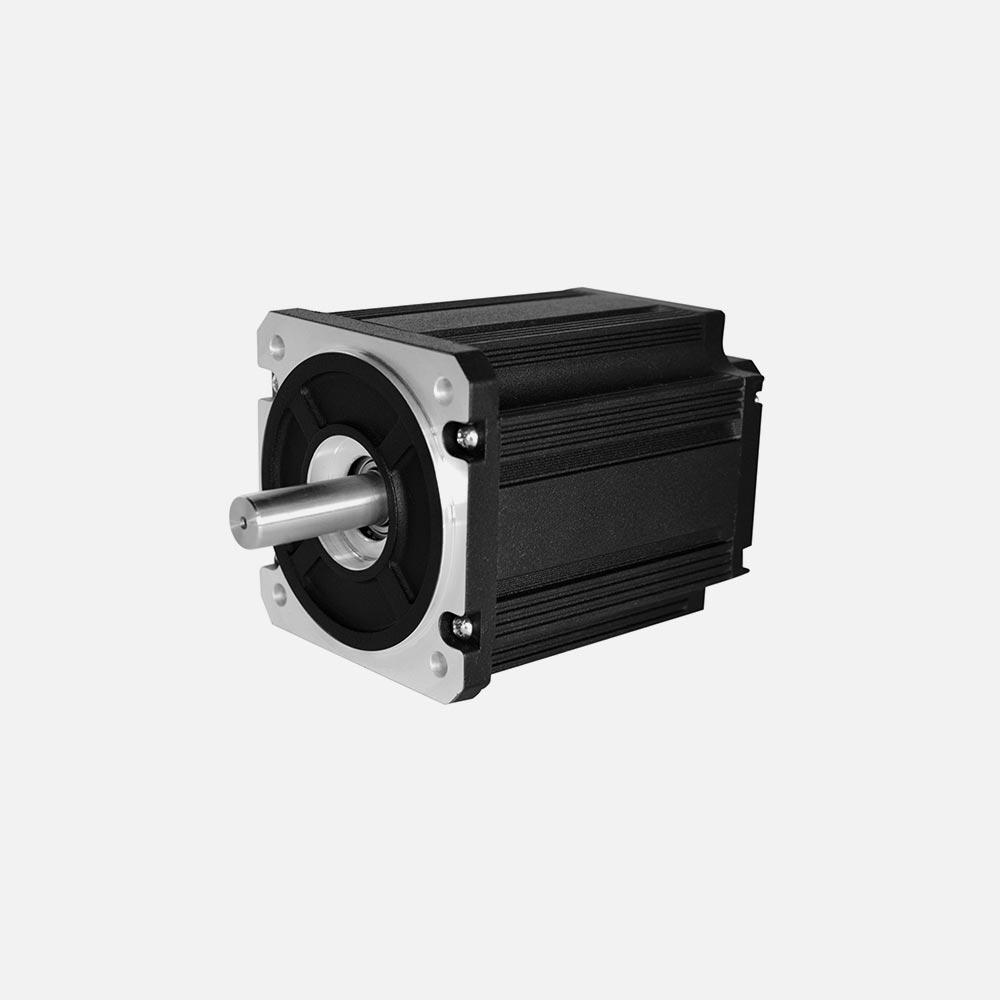

90BSB Series (4Poles 4)

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.08mm /450g
Max. radial force: 220N @ 20mm from the flange
Max. axial force: 60N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
90BSB068B040X-01432440000.60.52091.5
90BSB075D040X-014840000.80.72932.1
90BSB088D020X-014820001.212093
90BSB088D060X-014860001.216283
90BSB108D020X-014820001.71.63354.8
90BSB108D040X-014840001.71.66284.5
90BSB136I020X-0131020002.225247.5
90BSB136I060X-0131060002.2212566


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
90BSB068B040X-0117.30.0879.20.456812~802000~ 60001.4
90BSB075D040X-0124.20.0879.20.6751.7
90BSB088D020X-0117.40.17218.240.9882.1
90BSB088D060X-01350.0869.060.9882.1
90BSB108D020X-0127.80.17218.242.110848~3102.6
90BSB108D040X-0151.80.0879.22.11082.6
90BSB136I020X-016.61.137120.32.951364.1
90BSB136I060X-0114.70.40943.32.951364.1


OUTLINE MAP
