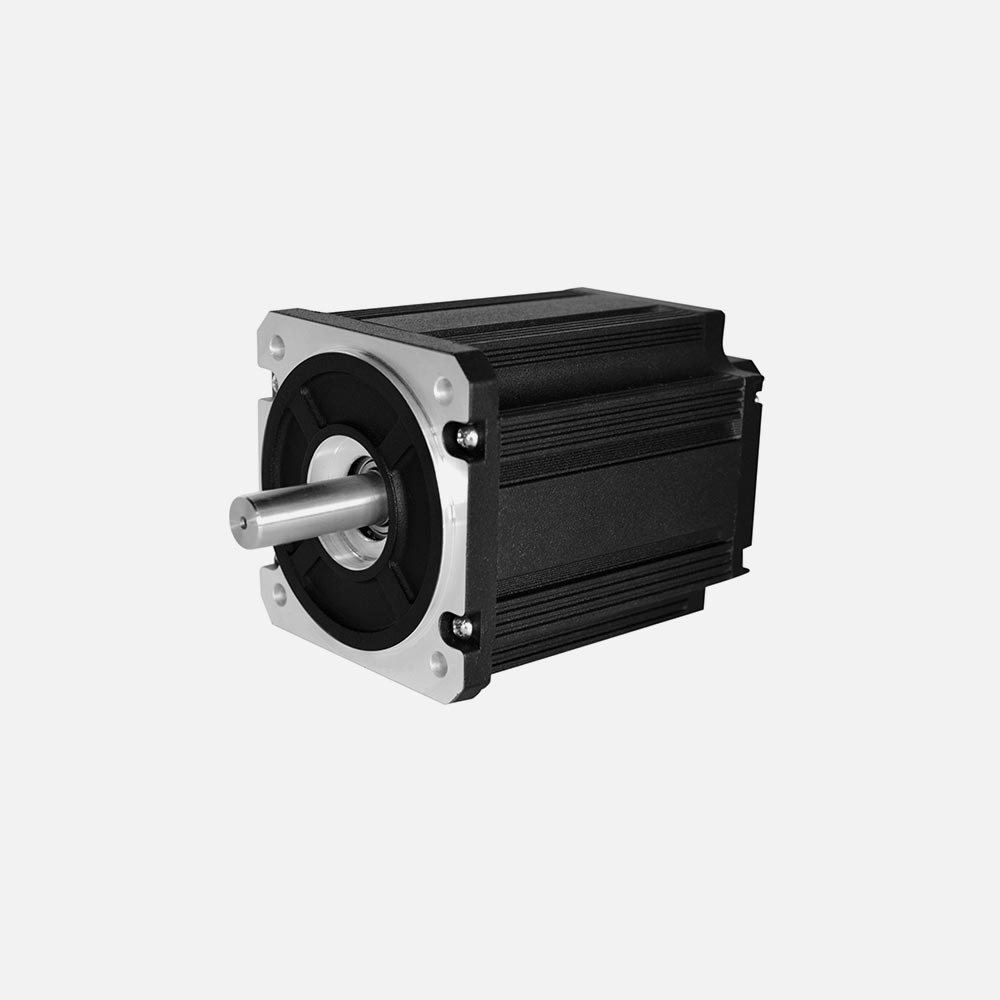

90BSA Series (8Poles 8)

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.08mm /450g
Max. radial force: 220N @ 20mm from the flange
Max. axial force: 60N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
90BSA068A030X-01831230000.60.51571.5
90BSA075B030X-012430000.80.72202.1
90BSA088D010X-0148100010.85892.55
90BSA088D030X-0148300010.852672.55
90BSA108D010X-014810001.91.71785.1
90BSA108D030X-014830001.91.75345.1
90BSA136I010X-01310100032.52627.5
90BSA136I030X-01310300032.57857.5


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
90BSA068A030X-0150.40.033.150.66812~801000~ 30001.4
90BSA075B030X-0170.50.033.150.8751.7
90BSA088D010X-017.90.32434.31.2882.1
90BSA088D030X-0121.40.11912.61.2882.1
90BSA108D010X-0116.90.302321.810848~3102.6
90BSA108D030X-0142.80.11912.61.81082.6
90BSA136I010X-0141.892002.651364.1
90BSA136I030X-019.70.7781.52.651364.1


OUTLINE MAP
