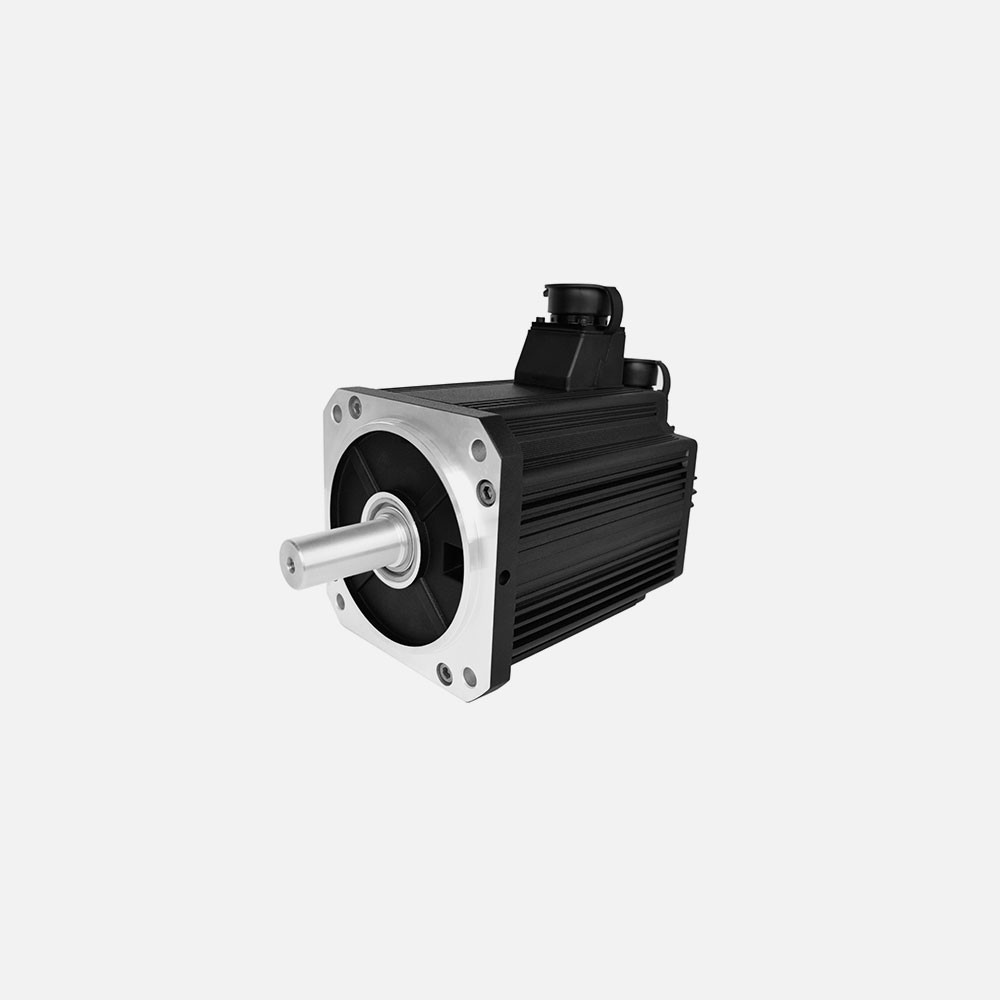

SERVO MOTOR
| PERFORMANCE DATA |
| Model | Poles | Rated voltage | Rated power | Rated torque | Rated speed | Maximum Toque | Rated Current | Maximum Current | Torque Coefficient |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 130S04025A3EMRD | 4P | 311/220 | 1000 | 4 | 2500 | 12 | 4 | 12 | 1 |
| 130S05020A3EMRD | 4P | 311/220 | 1000 | 5 | 2000 | 15 | 4.2 | 12 | 1.19 |
| 130S07725A3EMRD | 4P | 311/220 | 2000 | 7.7 | 2500 | 22 | 7.5 | 17.7 | 1.03 |
| 130S10025A3EMRD | 4P | 311/220 | 2600 | 10 | 2500 | 30 | 10 | 30 | 1 |
| 130S15025A3EMRD | 4P | 311/220 | 3800 | 15 | 2500 | 45 | 13.5 | 40.5 | 1.58 |
| Model | Rotor Intertia | Back E.M.F | Dielectric Strength | Safety Class | Encoder Type | Environment | Weight | Length |
| Units | Kg*cm² | V/Krpm | / | / | / | / | Kg | mm |
| 130S04025A3EMRD | 10.5 | 72 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 7.7 | 145mm |
| 130S05020A3EMRD | 12 | 79 | F | IP64 | 8.2 | 159m | ||
| 130S07725A3EMRD | 15.3 | 67 | F | IP64 | 10 | 179mm | ||
| 130S10025A3EMRD | 23.4 | 72 | F | IP64 | 11.5 | 199mm | ||
| 130S15025A3EMRD | 29.1 | 67 | F | IP64 | 14.4 | 219mm |
| OUTLINE MAP |
