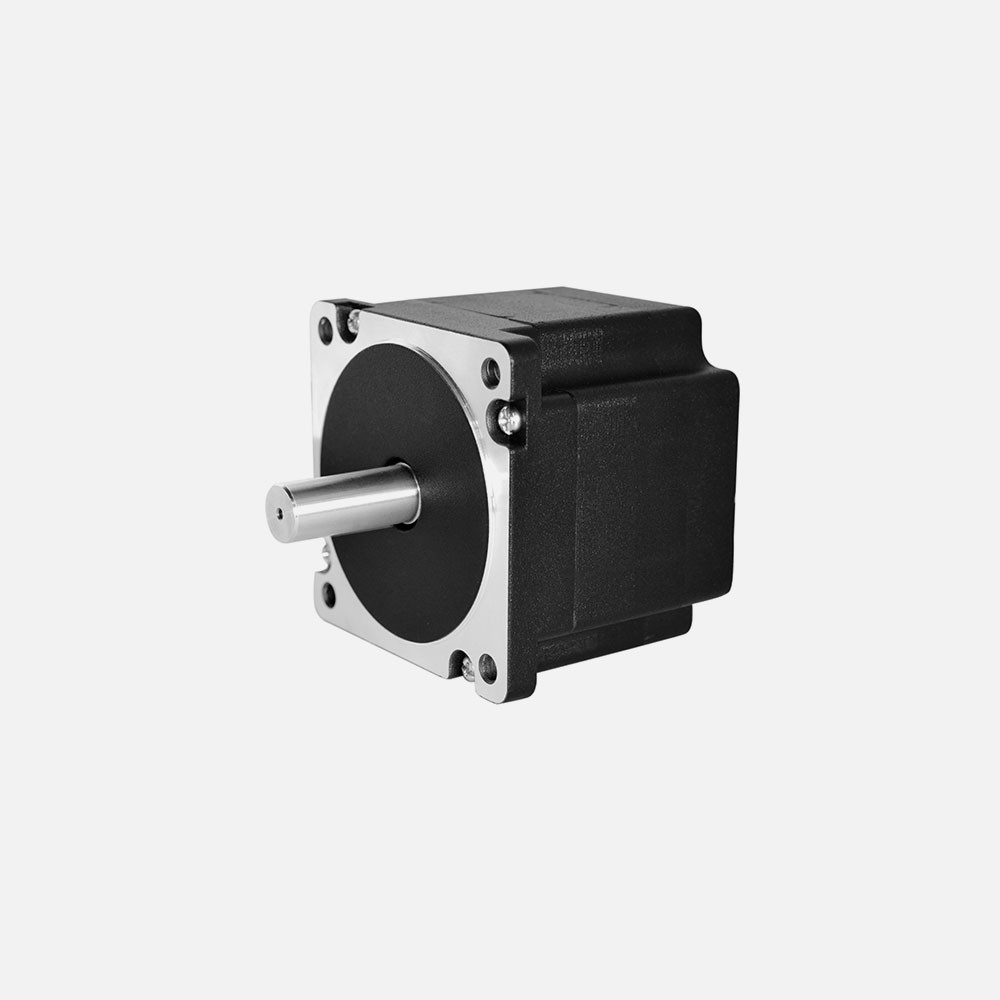

86BSD Series (4Poles 4)

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.08mm /400g
Max. radial force: 115N @ 20mm from the flange
Max. axial force: 45N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC
PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
86BSD071B020X-01432420000.840.7147 2.1
86BSD071D040X-014840000.840.7293 2.1
86BSD098D020X-014820001.681.4293 4.2
86BSD098I060X-0131060001.681.4879 4.2
86BSD125D020X-014820002.522.1440 6.3
86BSD125I060X-0131060002.221256 6


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
86BSD071B020X-01250.0848.90.77112~3102000~ 60001.9
86BSD071D040X-01250.0848.90.7711.9
86BSD098D020X-0124.70.17181.4982.6
86BSD098I060X-0110.80.3941.31.4982.6
86BSD125D020X-01360.17518.52.11254
86BSD125I060X-0115.40.3941.32.11254


OUTLINE MAP
