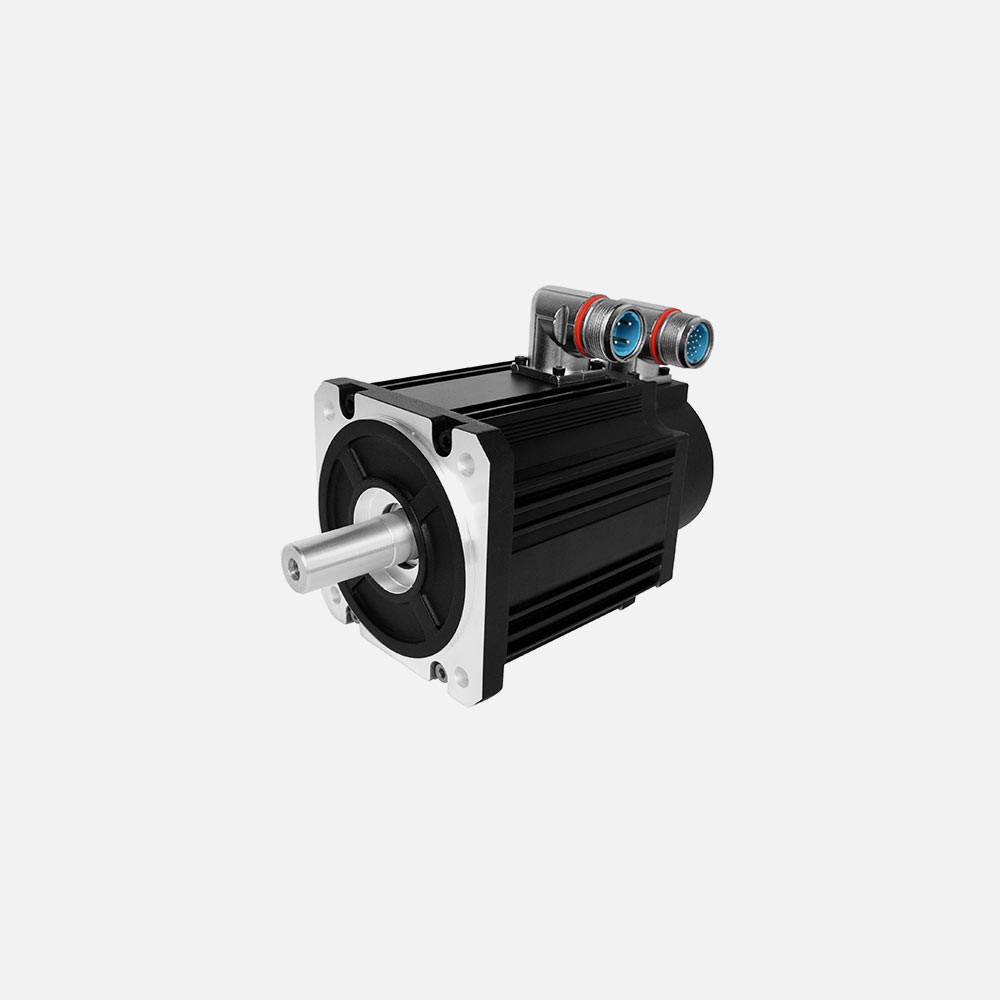

90S Series (90mm)

PERFORMANCE DATA


ModelPloesRated
 voltage
Rated
power
Rated
torque
Rated
speed
Maximum
Toque
Maximum
 Speed
Rated
Current
Maximum
Current
Units/VDC/VACWN.mrpmN.mrpmAA
90S02430A3EMRD4P2207502.430007.127001836
90S03530A3EMRD4P2207303.5200010.5250015.731.4
90S04030A3EMRD4P22010004250012N13007.915.8


ModelTorque
Coefficient
Rotor
Intertia
Back
E.M.F
Dielectric
Strength
Safety
Class
Encoder
Type
EnvironmentWeight Length
UnitsN.m/AKg*cm²V/Krpm////Kgmm
90S02430A3EMRD1.111.8250FIP642500ppr
incremental
encoder
-20℃ to 40℃
humidity<90%
3.3138.8mm
90S03530A3EMRD1.272.6367FIP643.9156.8mm
90S04030A3EMRD2.532.9760FIP644.2164.8mm


OUTLINE MAP
