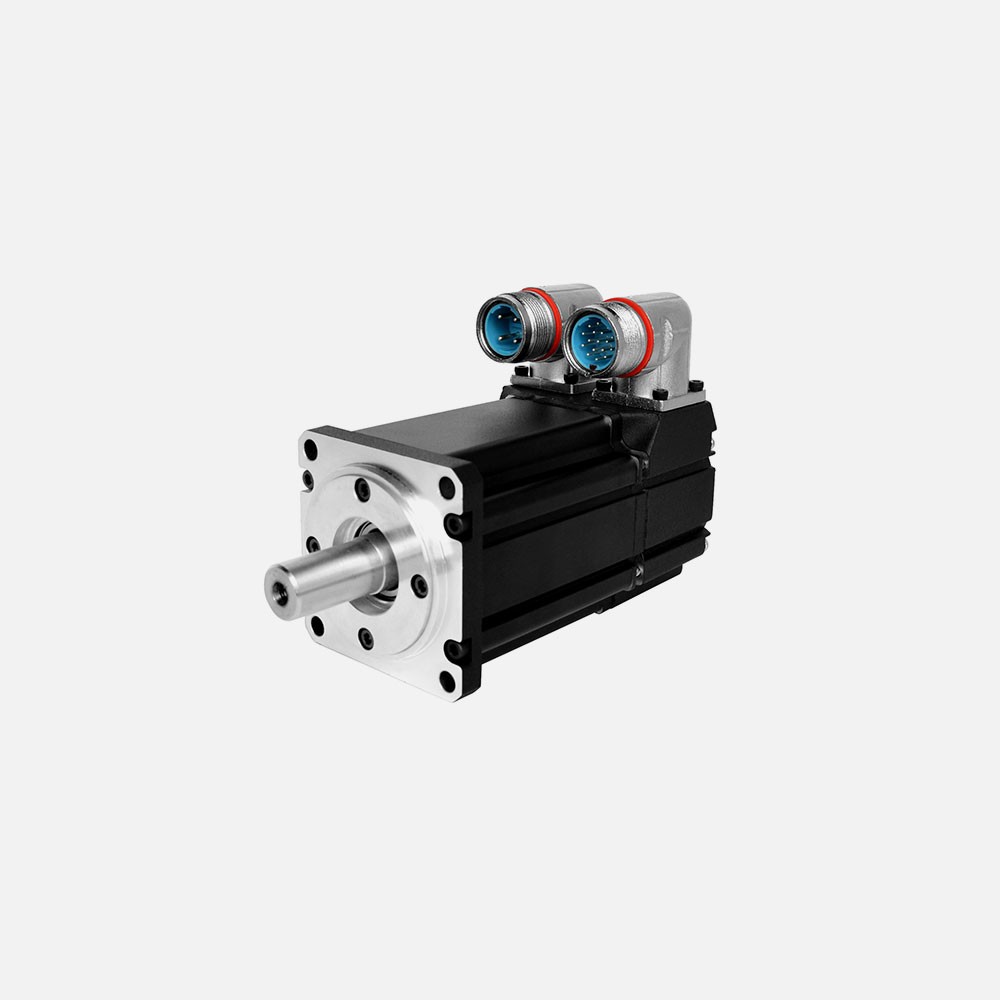

SERVO MOTOR
| PERFORMANCE DATA |
| Model | Poles | Rated voltage | Rated power | Rated torque | Rated speed | Maximum Toque | Rated Current | Maximum Current | Torque Coefficient |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 60S00730A3EMRD | 5P | 311/220 | 200 | 0.637 | 3000 | 1.91 | 1.4 | 4.2 | 0.5 |
| 60S01330A3EMRD | 5P | 311/220 | 400 | 1.27 | 3000 | 3.9 | 2.8 | 8.4 | 0.5 |
| Model | Rotor Intertia | Back E.M.F | Dielectric Strength | Safety Class | Encoder Type | Environment | Weight | Length |
| Units | Kg*cm² | V/Krpm | / | / | / | / | Kg | mm |
| 60S00730A3EMRD | 0.32 | 30 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 1.3 | 115 |
| 60S01330A3EMRD | 0.51 | 30 | F | IP64 | 1.8 | 140 |
| OUTLINE MAP |
