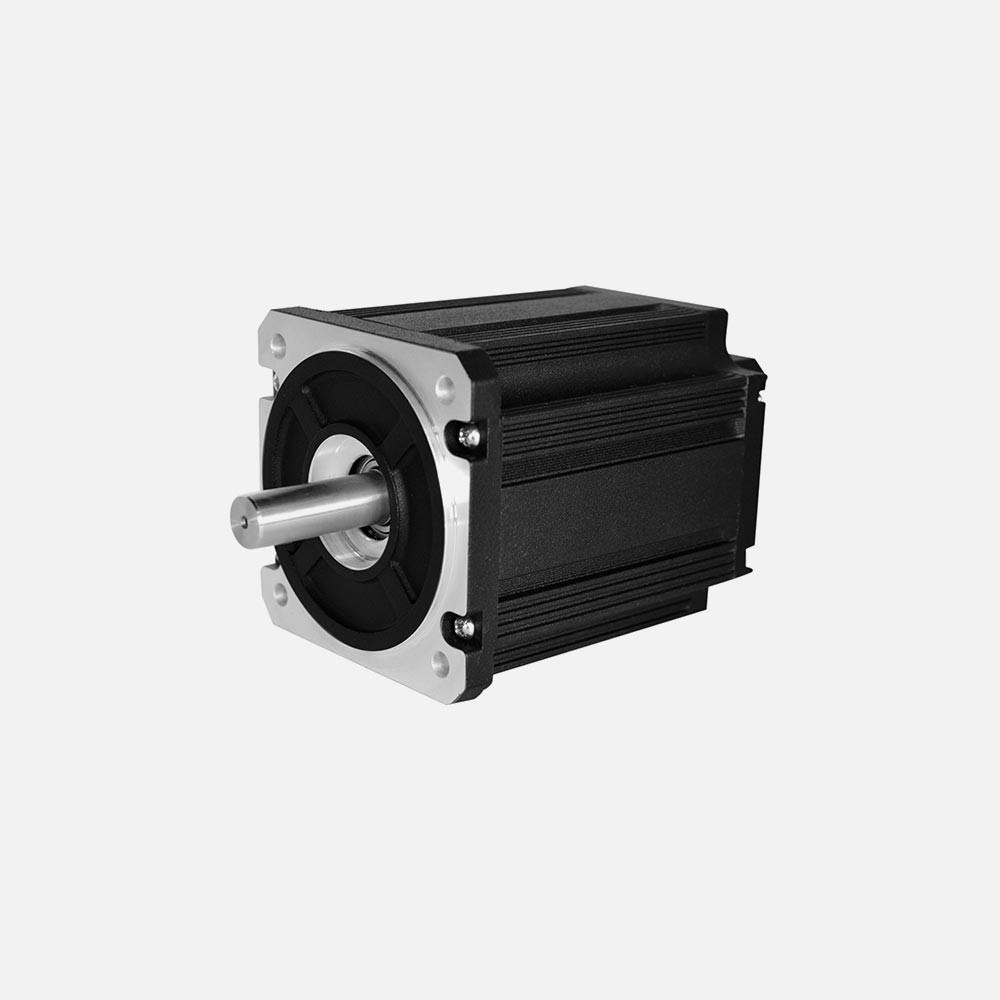

80BSA Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.025mm /460g
End play: 0.025mm /400g
Max. radial force: 115N @ 10mm from the flange
Max. axial force: 45N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
80BSA098D025X-01834825001.561.33403.8
80BSA122D030X-014830002.92.47547.1
80BSA150I020X-0131020004.23.573310.5
80BSA160I025X-0131025004.84104712


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
80BSA098D025X-0128.30.121101.059812~3101000~ 30003
80BSA122D030X-0162.80.0688.81.821223.5
80BSA150I020X-019.50.04277.52.631504.1
80BSA160I025X-0113.50.12165.72.971604.3


OUTLINE MAP
