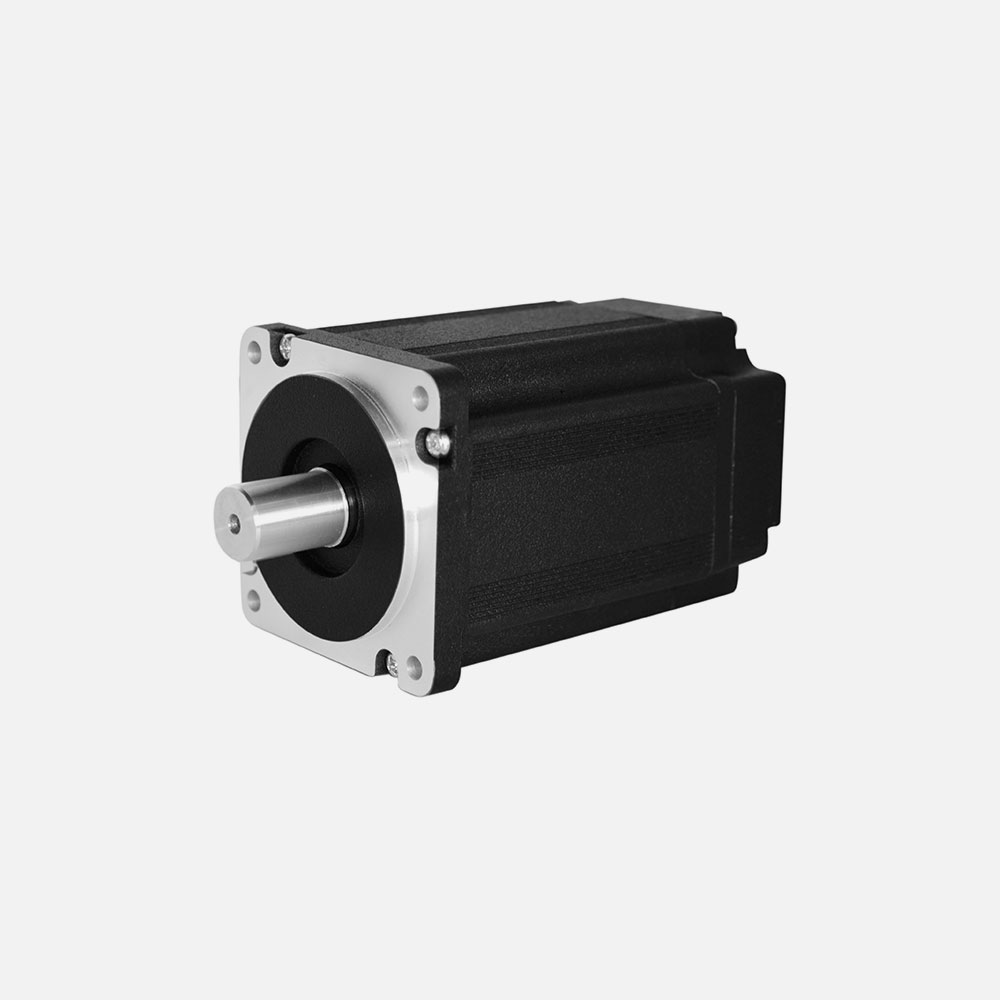

60BSA Series

   GENERAL SPECIFICATION

Winding type: Delta
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.025mm /460g
End play: 0.025mm /400g
Max. radial force: 115N @ 20mm from the flange
Max. axial force: 45N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
60BSA072B010X-01832410000.380.3233.50.96
60BSA072B030X-0130000.380.321000.96
60BSA092B010X-0110000.780.65681.95
60BSA092B030X-0130000.780.652041.95
60BSA114B010X-0110001.211053
60BSA114B030X-0130001.213143
60BSA134B010X-0110001.561.31363.9
60BSA134B030X-0130001.561.34083.9


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
60BSA072B010X-0160.1617.14707212~3101000~ 30000.55
60BSA072B030X-0117.90.054670720.55
60BSA092B010X-0112.20.1617.14140920.95
60BSA092B030X-0136.50.0546140920.95
60BSA114B010X-0118.80.1617.142101141.35
60BSA114B030X-01560.05462101141.35
60BSA134B010X-0124.30.1617.142801341.75
60BSA134B030X-01730.05462801341.75


OUTLINE MAP
