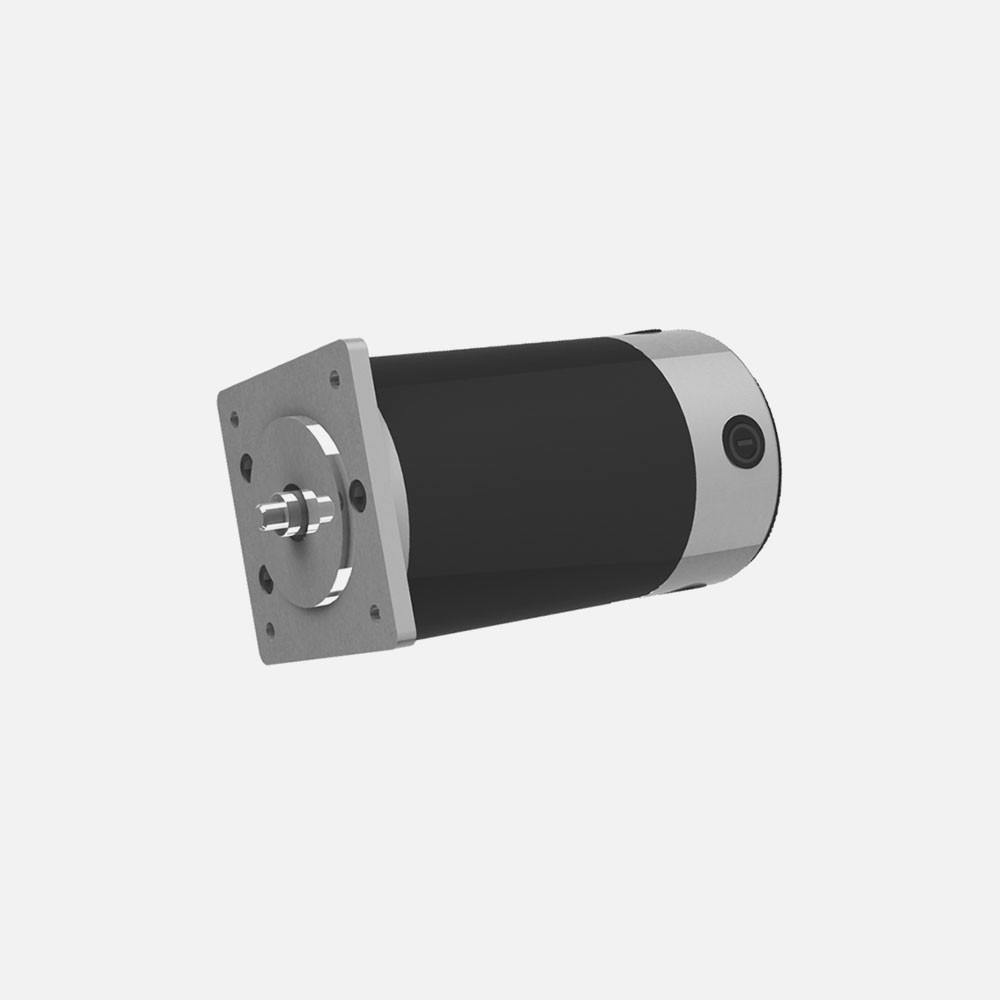

100ZYT Series

   GENERAL SPECIFICATION

Voltage Range: 12 & 24V dc ( 48V also available )
Power Output Range: 90 ~ 150 W
Speed Range: up to 9,000 rpm
Operational Temperature: -20℃ ~ +40℃
Insulation Class: F ( consult us for class B )
Bear Type: High quality ball bearings
Housing Type: Closed ( ventilated also available )

PERFORMANCE DATA

Part NumberVoltageRated
Power
Rated
Speed
Rated
Torque
Rated
Current
No load
Current
No load
Speed
Length
UnitsVWrpmmNmAArpmmm
100ZYT145-12V1229034500.832.553920145
100ZYT145-24V2429034500.815.62.33920145
100ZYT165-12V1219723500.82232250165
100ZYT165-24V2434841500.820.33.54660165
100ZYT200-12V1218815001.224.531900200
100ZYT200-24V2418815001.2131.51900200

OUTLINE MAP
