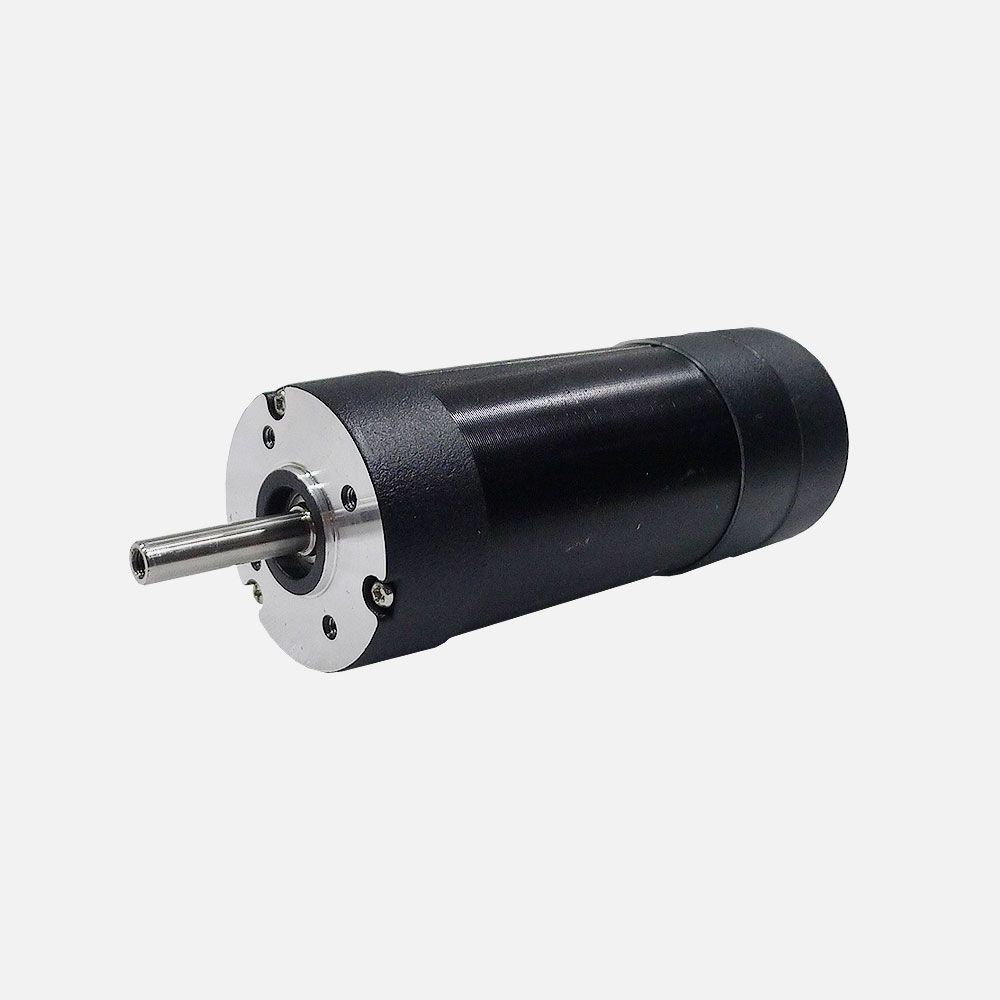

57BYB Series

   GENERAL SPECIFICATION

Winding type: Delta
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.025mm /460g
End play: 0.025mm /4000g
Max. radial force: 75N @ 20mm from the flange
Max. axial force: 15N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
57BYB054B020X-01432420000.1920.1633.50.48
57BYB054B040X-0140000.1920.16670.48
57BYB074B020X-0120000.3480.29600.87
57BYB074B040X-0140000.3480.291210.87
57BYB094B020X-0120000.4920.41861.23
57BYB094B040X-0140000.4920.411721.23
57BYB114B020X-0120000.6840.571191.71
57BYB114B040X-0140000.6840.572381.71


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
57BYB054B020X-0160.088.577582.512~802000~ 40000.4
57BYB054B040X-01120.074.87582.50.4
57BYB074B020X-0110.70.088.57119102.50.8
57BYB074B040X-0121.60.044.8119102.50.8
57BYB094B020X-0115.30.088.57173122.51.1
57BYB094B040X-0130.70.044.8173122.51.1
57BYB114B020X-0121.20.088.57230142.51.3
57BYB114B040X-0142.50.044.8230142.51.3


OUTLINE MAP
