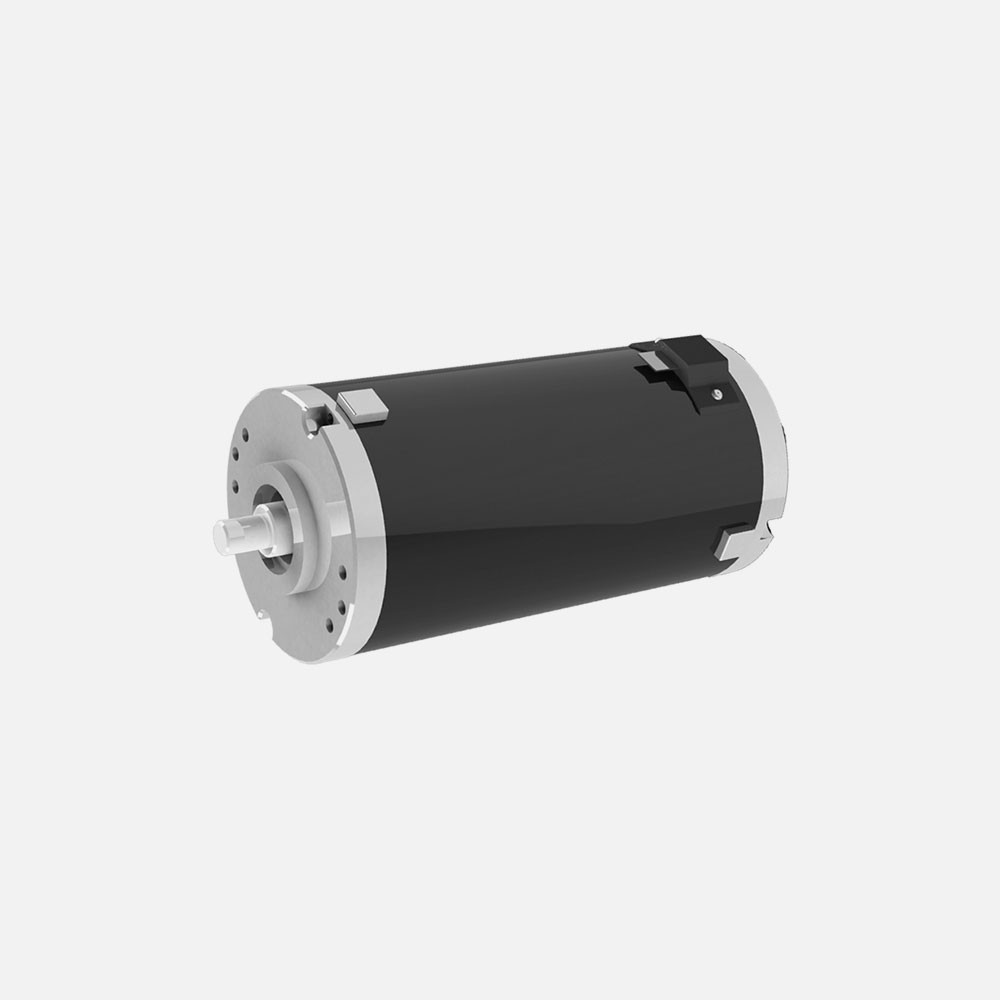

73ZYT Series

   GENERAL SPECIFICATION

Voltage Range: 12 & 24V dc ( 48V also available )
Power Output Range: 90 ~ 150 W
Speed Range: up to 9,000 rpm
Operational Temperature: -20℃ ~ +40℃
Insulation Class: F ( consult us for class B )
Bear Type: High quality ball bearings
Housing Type: Closed ( ventilated also available )

PERFORMANCE DATA

Part NumberVoltageRated
Power
Rated
Speed
Rated
Torque
Rated
Current
No load
Speed
Length
UnitsVWrpmmNmArpmmm
73ZYT127-12V12904400200114900127
73ZYT145-12V121203700300154200145
73ZYT155-12V121343200400133600155
73ZYT165-12V121503000500183400165
73ZYT127-24V2410047002005.55200127
73ZYT145-24V2413039003007.54500145
73ZYT155-24V2414534004008.53900155
73ZYT165-24V24170320050093600165

OUTLINE MAP
