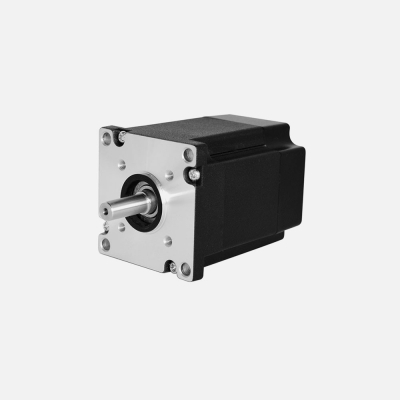

57BSB Series(Servo Motor )

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.025mm /460g
End play: 0.025mm /400g
Max. radial force: 115N @ 20mm from the flange
Max. axial force: 45N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
57BSB076B010X-01832410000.360.331.50.9
57BSB076B030X-0130000.360.394.50.9
57BSB096B010X-0110000.540.45471.35
57BSB096B030X-0130000.540.451411.35
57BSB116B010X-0110000.720.6631.8
57BSB116B030X-0130000.720.61881.8


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
57BSB076B010X-015.60.16131007612~801000~30000.65
57BSB076B030X-0116.80.0536100760.65
57BSB096B010X-018.40.1613150960.95
57BSB096B030X-0125.20.0536150960.95
57BSB116B010X-0111.250.16132001161.25
57BSB116B030X-0133.50.05362001161.25


OUTLINE MAP
