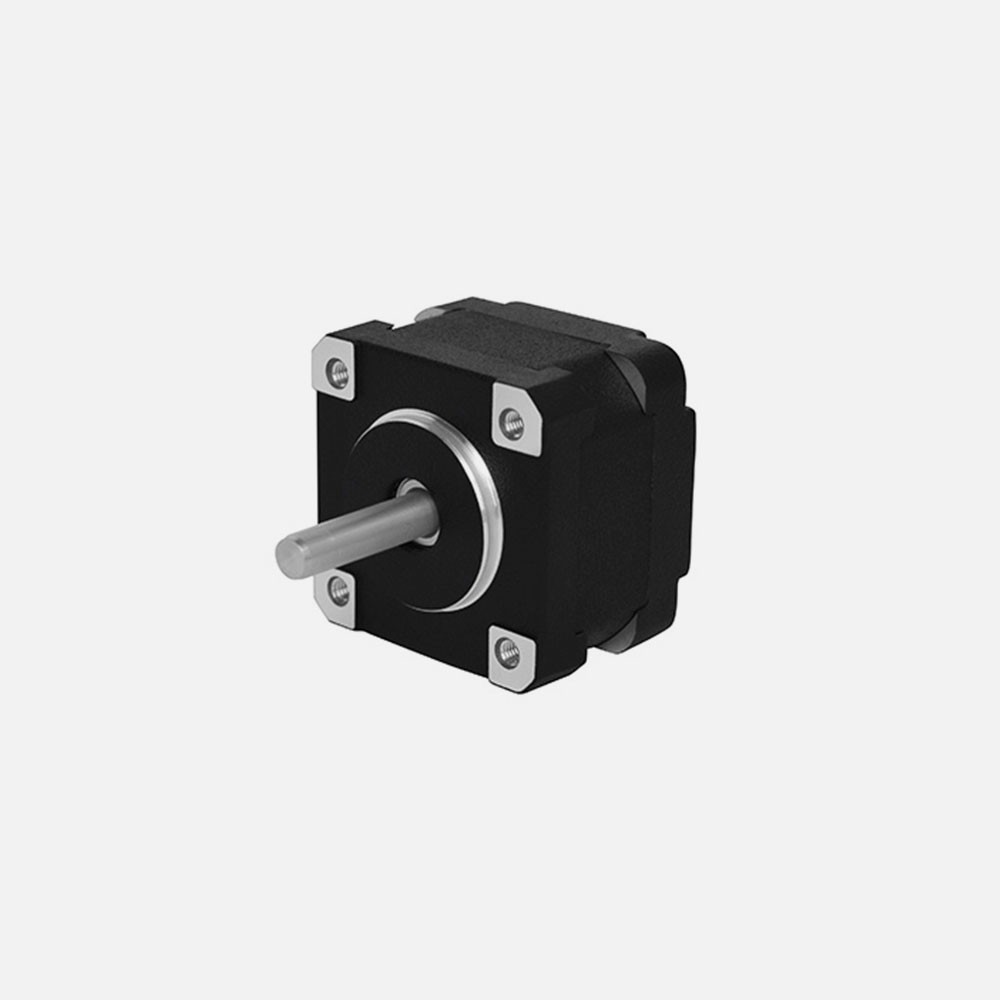

35HSM Series (0.9 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 28N ( 20mm from the flange )
Max. Axial Force: 10N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
35HS020DF400X-01201.8°40.83.254100.11
35HS022DE10JX-01221.8°100.5558110.12
35HS025DF10JX-01251.8°100.4454120.13
35HS027DS80JX-01271.8°800.1612.886140.15
35HS033DF24JX-01331.8°240.512184200.18
35HS034DS70JX-01341.8°700.1756200.18
35HS052DF680X-01521.8°6.80.85.4425450

0.28


OUTLINE MAP
