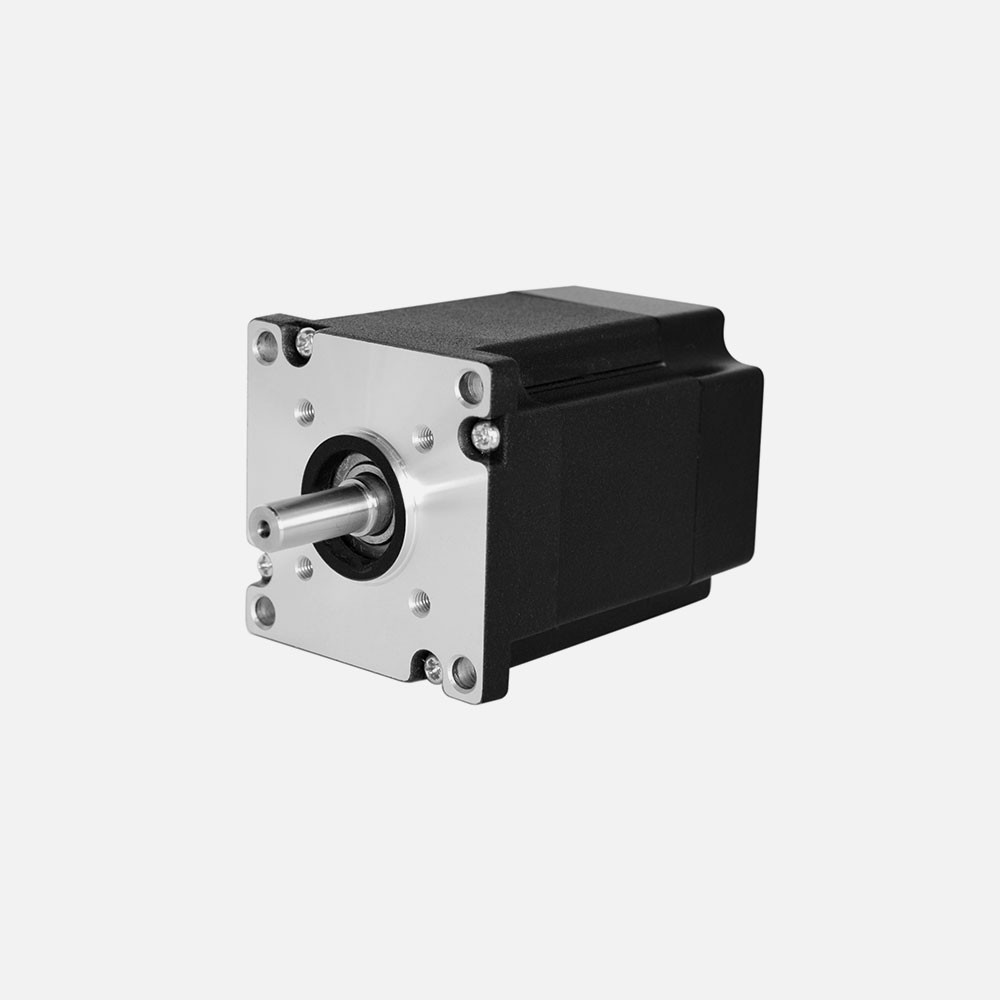

57BSA Series (big torque)

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.02mm /400g
Max. radial force: 75N @ 10mm from the flange
Max. axial force: 15N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
57BSA060B010X-01832410000.240.2210.6
57BSA060B030X-0130000.240.2630.6
57BSA080B010X-0110000.480.4421.2
57BSA080B030X-0130000.480.41251.2
57BSA100B010X-0110000.720.6621.8
57BSA100B030X-0130000.720.61881.8


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
57BSA060B010X-013.280.227241455912~801000~30000.6
57BSA060B030X-019.840.0586.1145590.6
57BSA080B010X-013.280.22724286801
57BSA080B030X-019.840.0586.1286801
57BSA100B010X-013.280.227244201011.5
57BSA100B030X-019.840.0586.14201011.5


OUTLINE MAP
