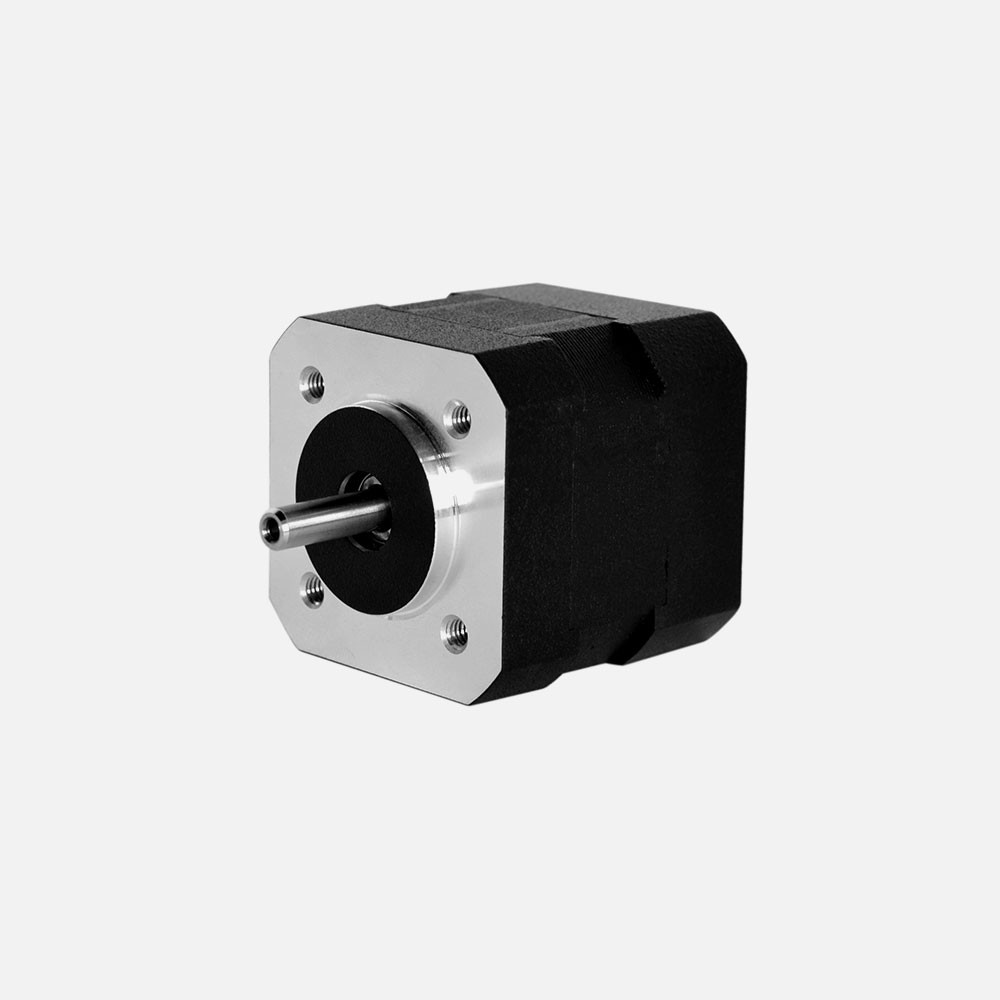

42BSB Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.025mm /400g
End play: 0.025mm /400g
Max. radial force: 15N @ 10mm from the flange
Max. axial force: 10N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
42BSB041B020X-01832420000.0720.063130.19
42BSB041B040X-0140000.0720.063260.19
42BSB041B080X-0180000.0720.063520.19
42BSB061B020X-0120000.1440.125260.375
42BSB061B040X-0140000.1440.125520.375
42BSB061B080X-0180000.1440.1251040.375
42BSB081B020X-0120000.2250.1939.50.57
42BSB081B040X-0140000.2250.19790.57
42BSB101B020X-0120000.300 0.250 52.50.75
42BSB101B040X-014000 0.300 0.250 105.0 0.750


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
42BSB041B020X-012.70.0747.82244112~482000~80000.3
42BSB041B040X-015.40.0353.6624410.3
42BSB041B080X-0110.80.022.124410.3
42BSB061B020X-015.30.0747.8248610.45
42BSB061B040X-0110.60.0353.6648610.45
42BSB061B080X-0110.60.0352.148610.45
42BSB081B020X-017.250.0747.8272810.6
42BSB081B040X-0114.50.0353.6672810.6
42BSB101B020X-01100.0747.8296.00 101 0.80
42BSB101B040X-0120.00 0.035 3.66 96.00 101 0.80


OUTLINE MAP
