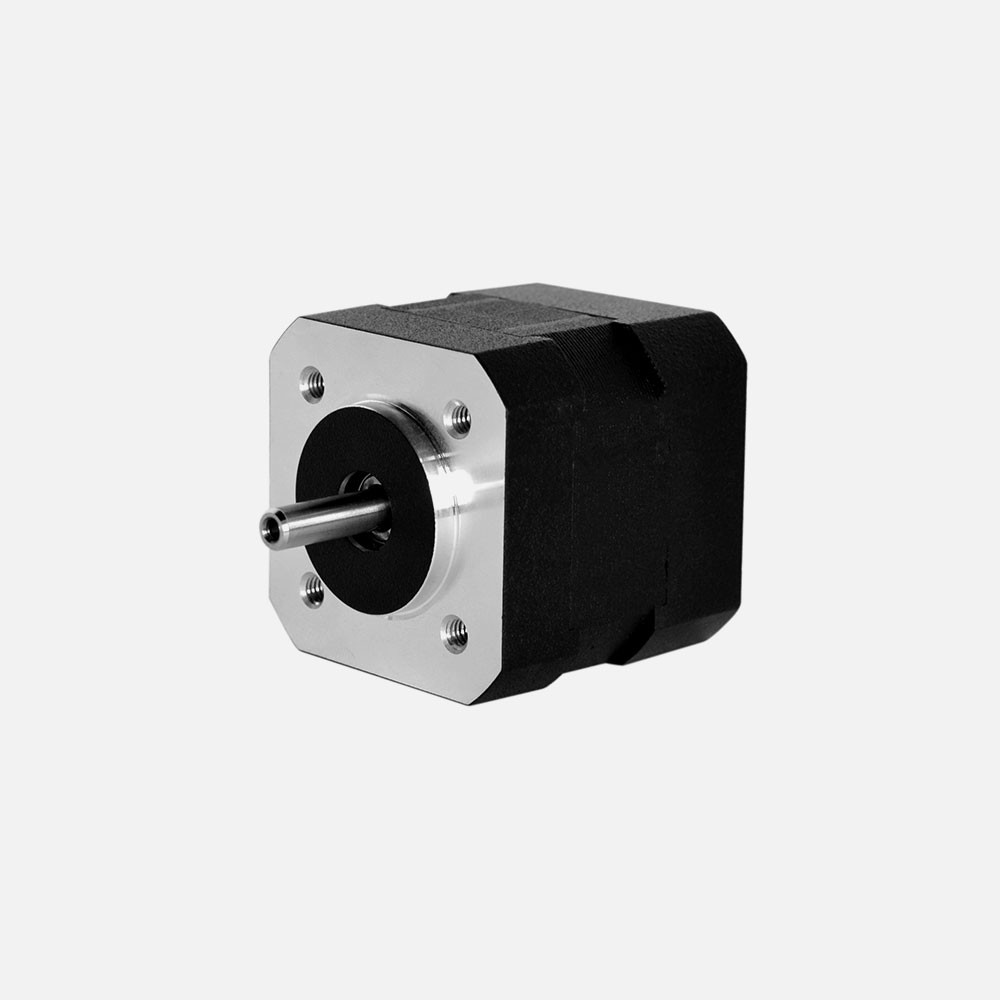

42BSA Series (big torque)

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.02mm /400g
Max. radial force: 15N @ 10mm from the flange
Max. axial force: 10N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
42BSA045B010X-01832410000.0960.088.30.24
42BSA045B030X-0130000.0960.08250.24
42BSA060B010X-0110000.190.1616.60.57
42BSA060B030X-0130000.190.16500.57
42BSA075B030X-0130000.280.24750.72
42BSA075B040X-0140000.280.241000.72


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
42BSA045B010X-011.30.16217.1244612~481000~40000.3
42BSA045B030X-013.90.066.324460.3
42BSA060B010X-012.60.16217.148620.44
42BSA060B030X-017.80.066.348620.44
42BSA075B030X-0111.720.036.372780.56
42BSA075B040X-0115.630.0454.872780.56


OUTLINE MAP
