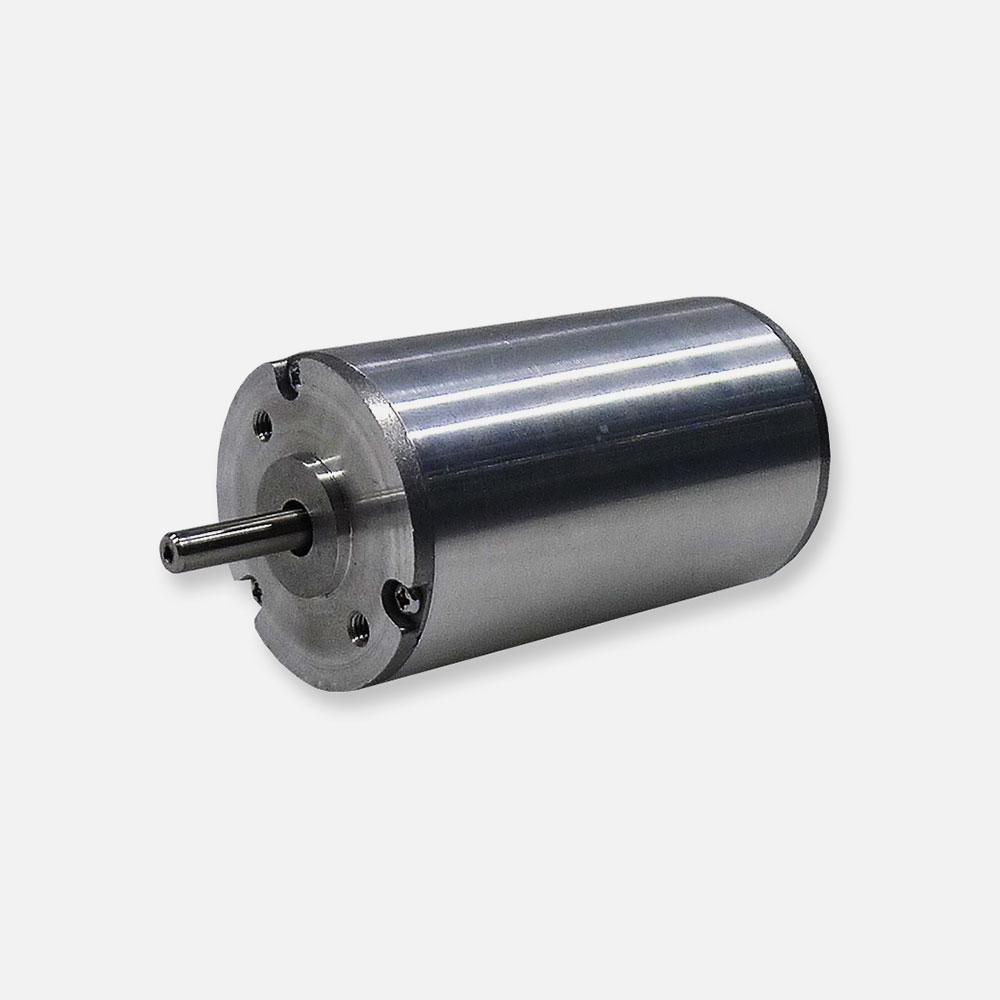

42BYA Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /460g
End play: 0.02mm /400g
Max. radial force: 15N @ 10mm from the flange
Max. axial force: 10N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
42BYA045B020X-01432420000.0480.048.40.12
42BYA045B040X-0140000.0480.0416.750.12
42BYA045B060X-0160000.0480.04250.12
42BYA054B020X-0120000.0960.08210.25
42BYA054B040X-0140000.0960.08420.25
42BYA054B060X-0160000.0960.08630.25
42BYA075B020X-0120000.1920.1633.50.45
42BYA075B040X-0140000.1920.161000.45


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
42BYA045B020X-011.340.075814.64324~482000~60000.37
42BYA045B040X-012.680.044.614.6430.37
42BYA045B060X-0140.028314.6430.37
42BYA054B020X-013.70.075820.3540.46
42BYA054B040X-0170.0434.620.3540.46
42BYA054B060X-0110.50.029320.3540.46
42BYA075B020X-015.60.075838730.63
42BYA075B040X-0116.80.029338730.63


OUTLINE MAP
