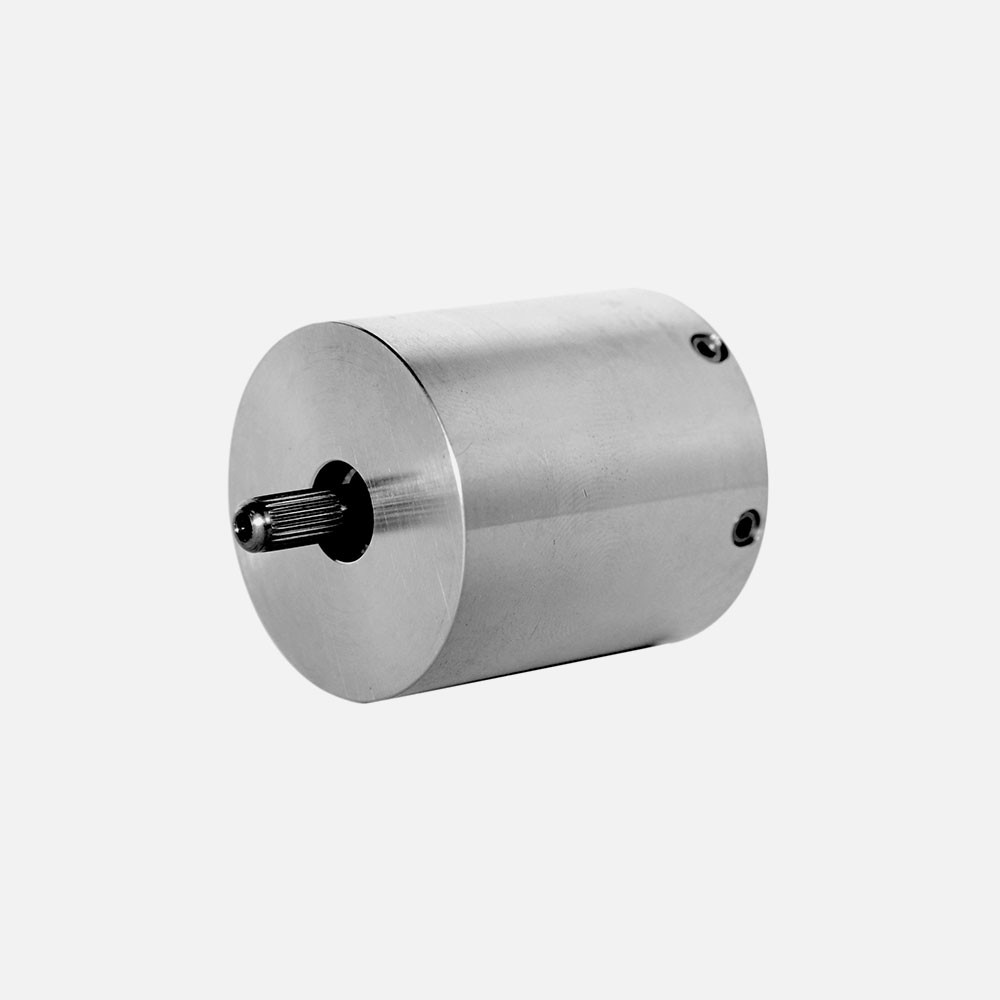

33BYA Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /450g
End play: 0.08mm /450g
Max. radial force: 2N @ 10mm from the flange
Max. axial force: 10N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA

ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMN.mN.mWN.m
33BYA036B150X-0143241500014.1611.818.535.4
33BYA036B200X-01242000014.1611.82535.4
33BYA036A200X-01122000014.1611.82535.4


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
33BYA036B150X-01311.8×10-31.52.333612~244000~220000.1
33BYA036B200X-014.059×10-31.092.330.1
33BYA036A200X-018.14.5×10-30.542.330.1


OUTLINE MAP
