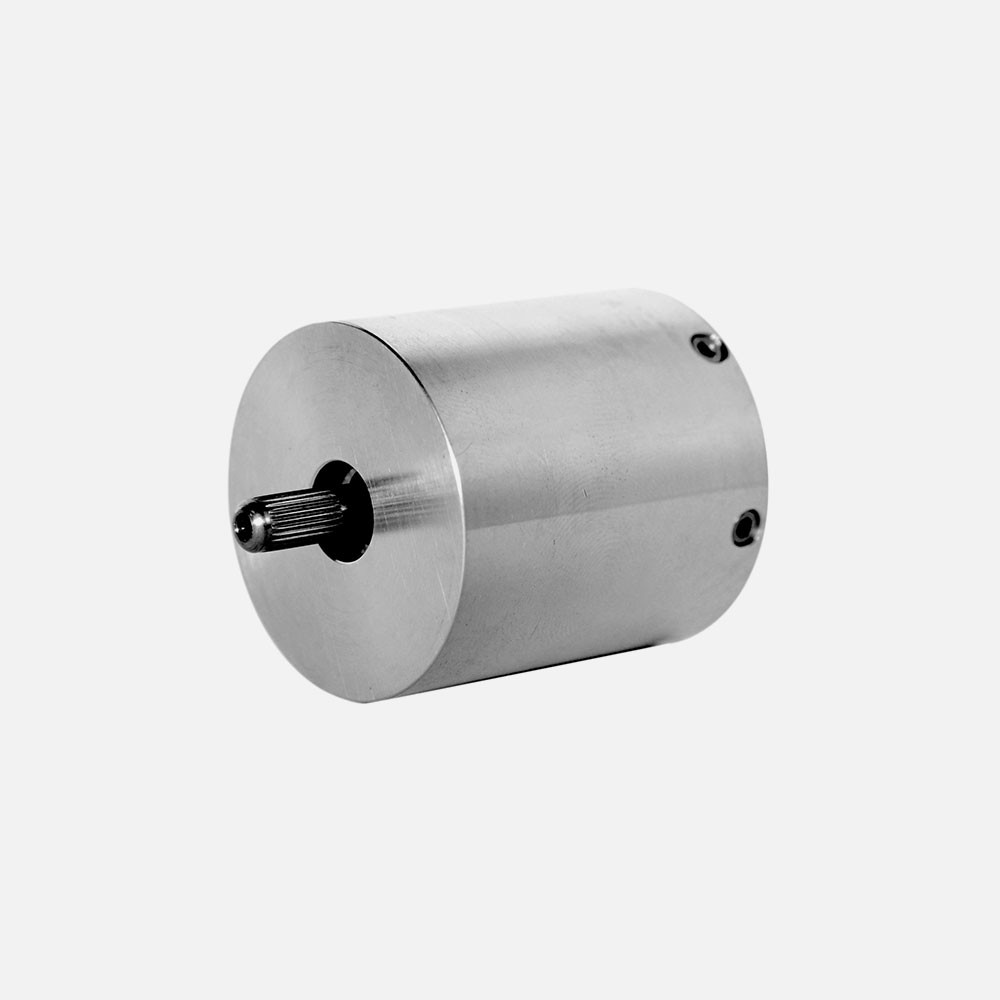

28BYA Series

   GENERAL SPECIFICATION

Winding type: YWE
Hall effect angle: 120 Deg. Electrical angle
Radial play: 0.02mm /450g
End play: 0.08mm /450g
Max. radial force: 2N @ 10mm from the flange
Max. axial force: 10N
Insulation class: B
Dielectric strength: 500VDC for one minute
Insulation resistance: 100MΩ min., 500VDC

PERFORMANCE DATA


ModelNumber
 of
poles
Number
 of phase
Rated
 voltage
Rated
speed
Continuous
stall
torque
Rated
torque
Rated
power
Peak
torque
Units

VDCRPMmN.mmN.mWmN.m
28BYA026A080X-01431580008.47621
28BYA038B031X-0124310019.2165.248
28BYA077B031X-0124 3100 60.00 50.00 16 150.00


ModelPeak
current
Torque
constant
Back
E.M.F
Rotor
inertia
Body
length
Voltage
range
Speed
Range
Weight
UnitsANm/AV/KRPMg.c㎡mmVDCRPMKg
28BYA026A080X-011.530.0141.51.232612~363000~80000.06
28BYA038B031X-010.870.0555.12.12380.08
28BYA077B031X-012.66 0.057 5.10 5.98 77 0.280


OUTLINE MAP
