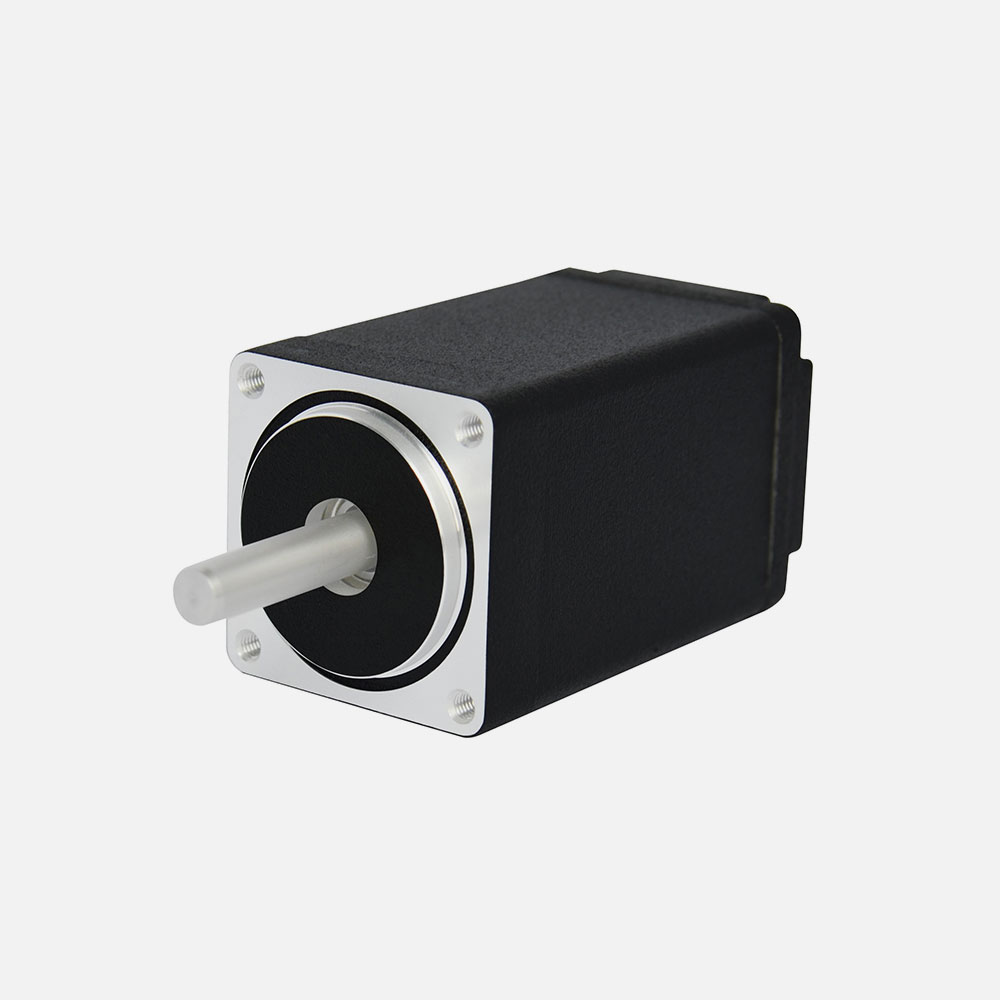

28HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 28N ( 20mm from the flange )
Max. Axial Force: 10N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
28HS020DF10JX-01201.8°100.553.4470.1
28HS024DF12JX-01241.8°120.563480.1
28HS031DF48JX-01311.8°480.314.464100.11
28HS033DS36JX-01331.8°360.310.856100.12
28HS040DS340X-01401.8°3.40.953.237.54120.14
28HS050DF350X-01501.8°3.513.5134180.2


OUTLINE MAP
