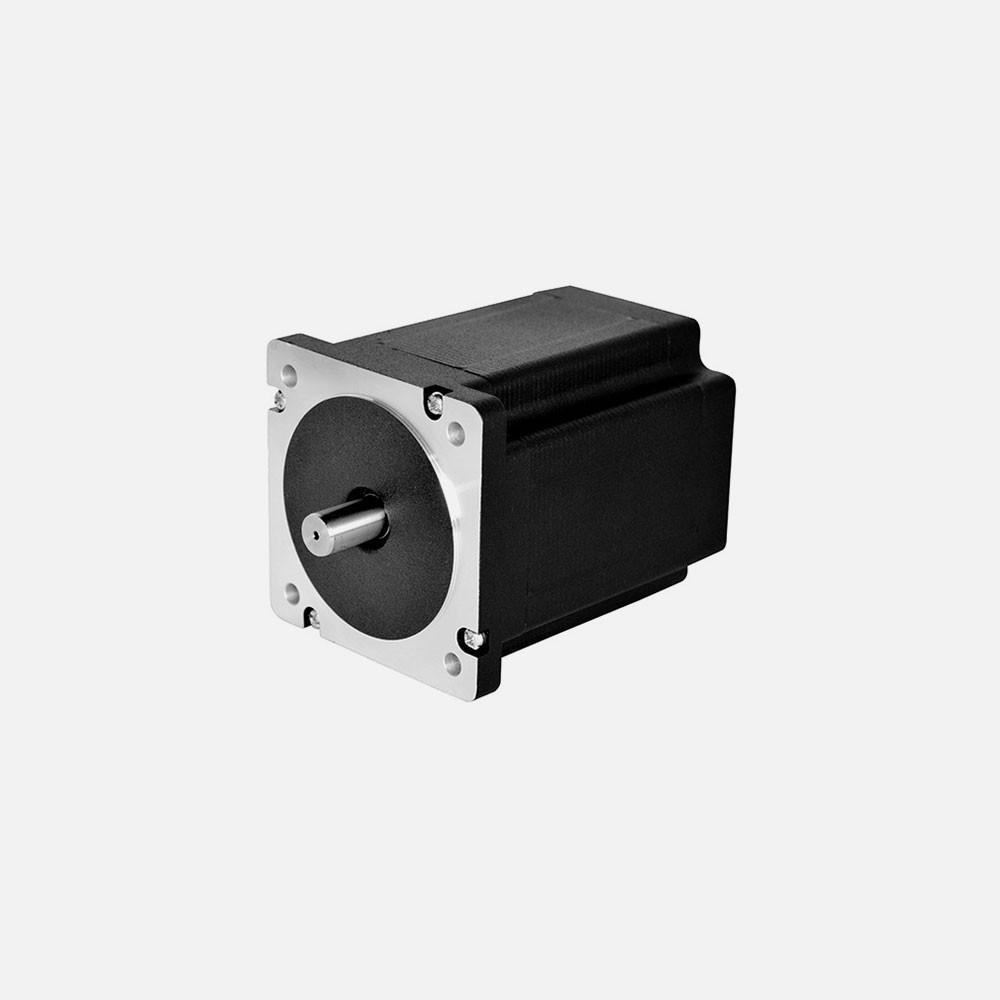

90HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 220N ( 20mm from the flange )
Max. Axial Force: 60N
Rotation: CW
Insulation Class: B (130℃)

PERFORMANCE DATA

Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
90HS065DE053X-01651.80.5352.632081.22200
90HS078DE062X-01781.80.6253.152081.83200
90HS095DE052X-01951.80.5263.170082.43600
90HS114DE065X-011141.80.6563.998083.54200
90HS150DE082X-011501.80.8264.9130084.85100

OUTLINE MAP
