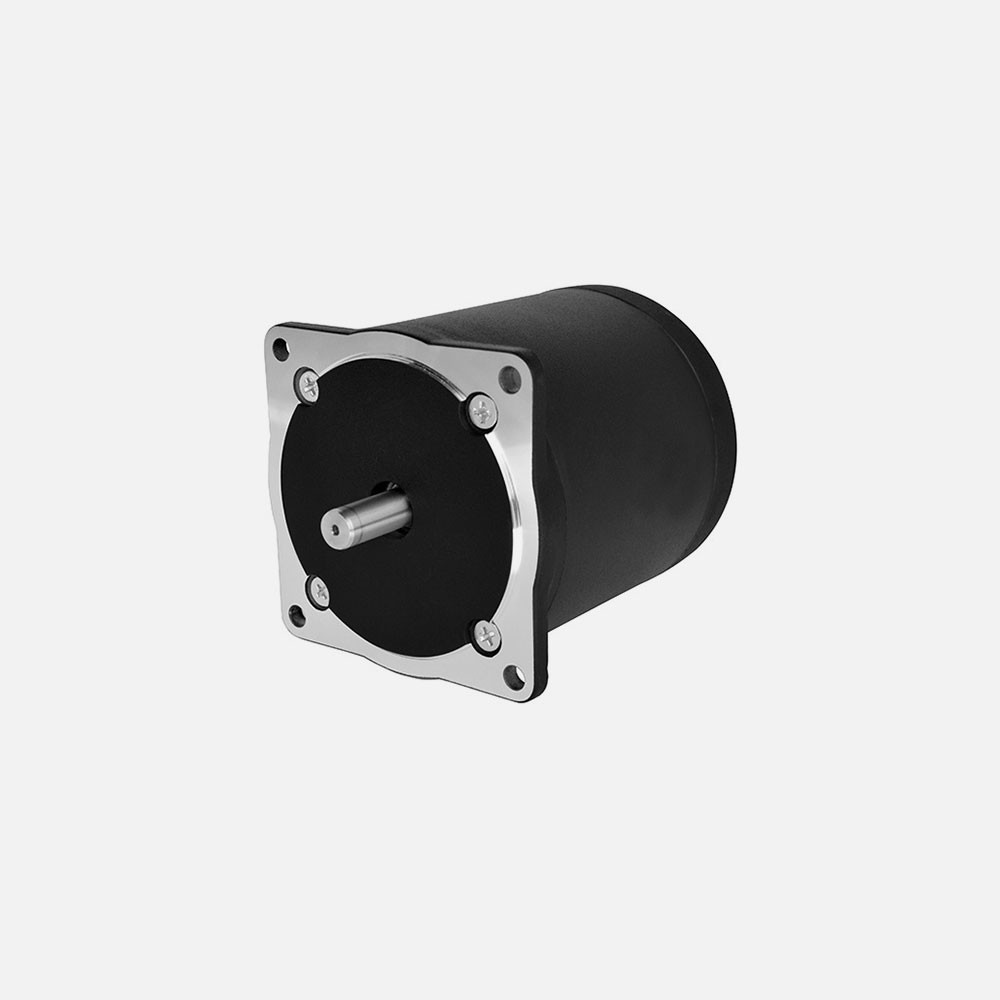

86HYD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 220N ( 20mm from the flange )
Max. Axial Force: 60N
Rotation: CW
Insulation Class: B (130℃)

PERFORMANCE DATA

Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
86HY064DF100X-01641.8°12.52.518045701.5
86HY075DF020X-01751.8°0.26.81.3616048001.9
86HY092DE270X-01921.8°2.725.4350812002.6
86HY112DE080X-011221.8°0.843.2450817503.2
86HY129DE070X-011291.8°0.753.5480821003.6


OUTLINE MAP
