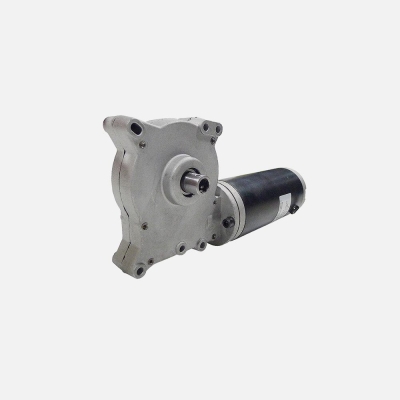

WG5 Series

   GENERAL SPECIFICATION

Gearbox Housing: Ruggedised Die-cast Aluminium
Worm Gear Material: Bronze, steel or plastic
Lubrication: Grease lubricated & sealed for life
Bearing Type: High quality ball bearings
Insulation Class: Class F (Optional: Class B)
Brush Type: Integral or removable
Ambient Operating Temperature: -20℃ to +40℃

PERFORMANCE DATA

Motor Type73ZYT Series
Motor Length159.6159.6mm
Rated Voltage24240VDC
Rated Speed 550550±10% rpm
Rated Power560600W
Geear Ratio 10:110:1
Motor Torque 1.21.2Nm
Motor Speed 55005500±10% rpm
Duty Cycle  2 to 3 seconds on,2 to 5 minutes off.

OUTLINE MAP
