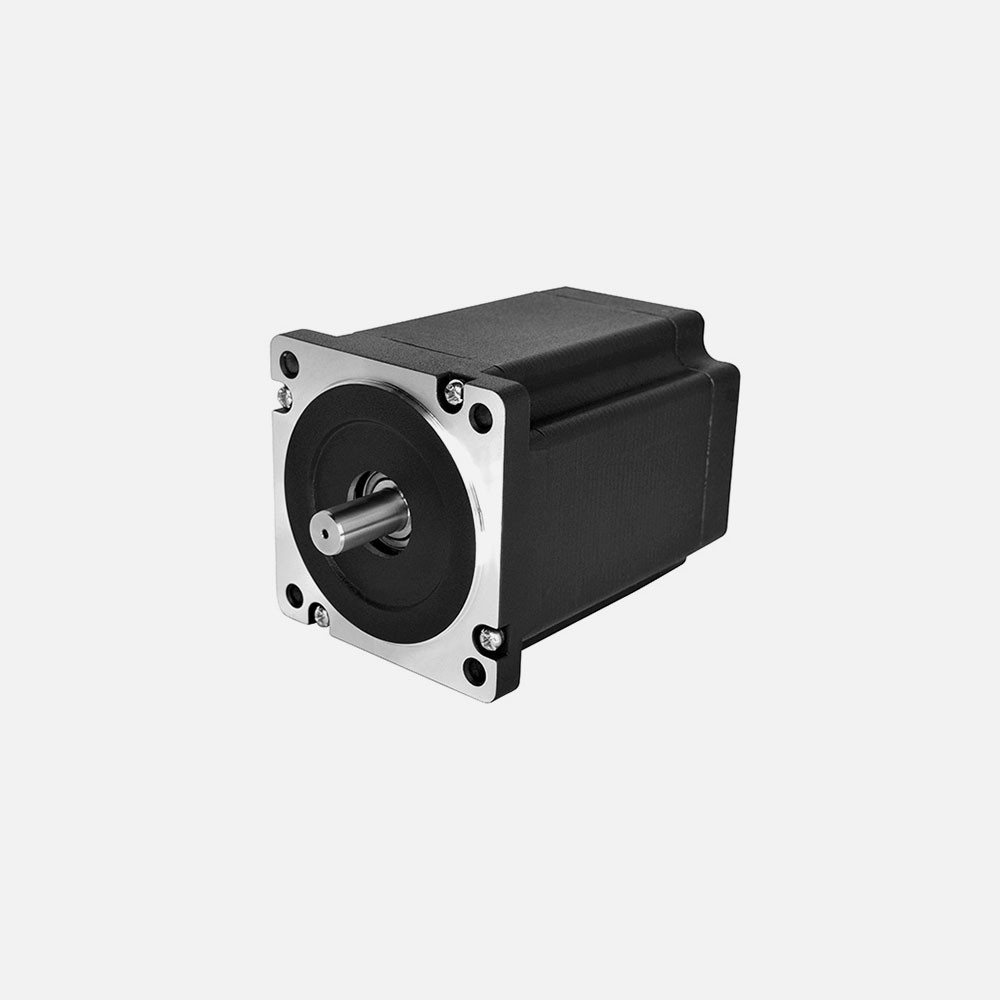

86HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 220N ( 20mm from the flange )
Max. Axial Force: 60N
Rotation: CW
Insulation Class: B (130℃)

PERFORMANCE DATA

Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
86HS065DE034X-01651.8°0.3451.7290814001.7
86HS066DE048X-01661.8°0.484.52.16220815001.9
86HS078DF042X-01781.8°0.425.52.31460418502.05
86HS080DE075X-01801.8°0.7553.75460819002.1
86HS090DF075X-01901.8°0.7543600423002.4
86HS096DF130X-01961.8°1.32.43.12450427002.8
86HS114DE100X-011141.8°144420832003.15
86HS118DE035X-011181.8°0.357.12.485607835003.3
86HS120DE100X-011201.8°14.54.5800838003.5
86HS150DE085X-011501.8°0.8575.951200845004.2


OUTLINE MAP
