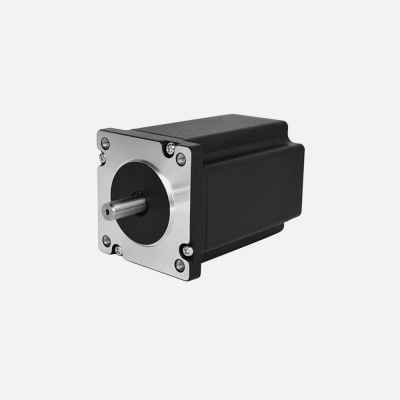

60HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 70N ( 20mm from the flange )
Max. Axial Force: 30N
Rotation: CW
Insulation Class: B (130℃)

PERFORMANCE DATA

Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
60HS044DF045X-01441.8°0.454.21.8910642800.62
60HS056DE210D-01561.8°2.124.212084000.8
60HS066DS210B-01661.8°2.12.85.8821065701.02
60HS076DF100X-01761.8°13321047201.18
60HS078DE076X-01781.8°0.763.52.720887501.2
60HS080DF075X-01801.8°0.754320048001.3
60HS088DE130X-01881.8°1.333.921589301.48
60HS100DE100X-011001.8°13.53.5320812001.65


OUTLINE MAP
