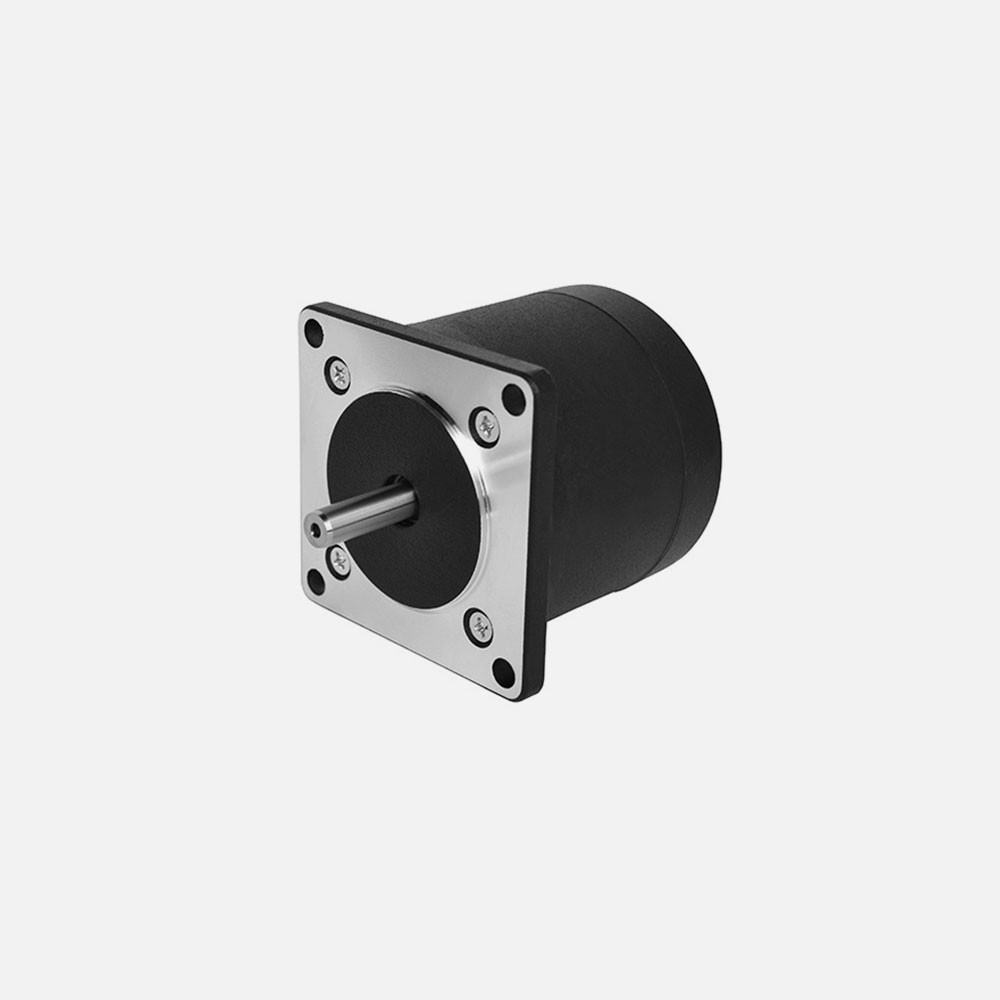

57HYD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 70N ( 20mm from the flange )
Max. Axial Force: 30N
Rotation: CW
Insulation Class: B (130℃)

PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
57HY041DF40JX-01411.8°400.520424550.36
57HY051DE500X-01511.8°5155381200.51
57HY055DF200X-01551.8°21.42.86041400.6
57HY056DF093X-01561.8°0.9332.797041450.62
57HY076DF360X-01761.8°3.61.55.49043000.96


OUTLINE MAP
