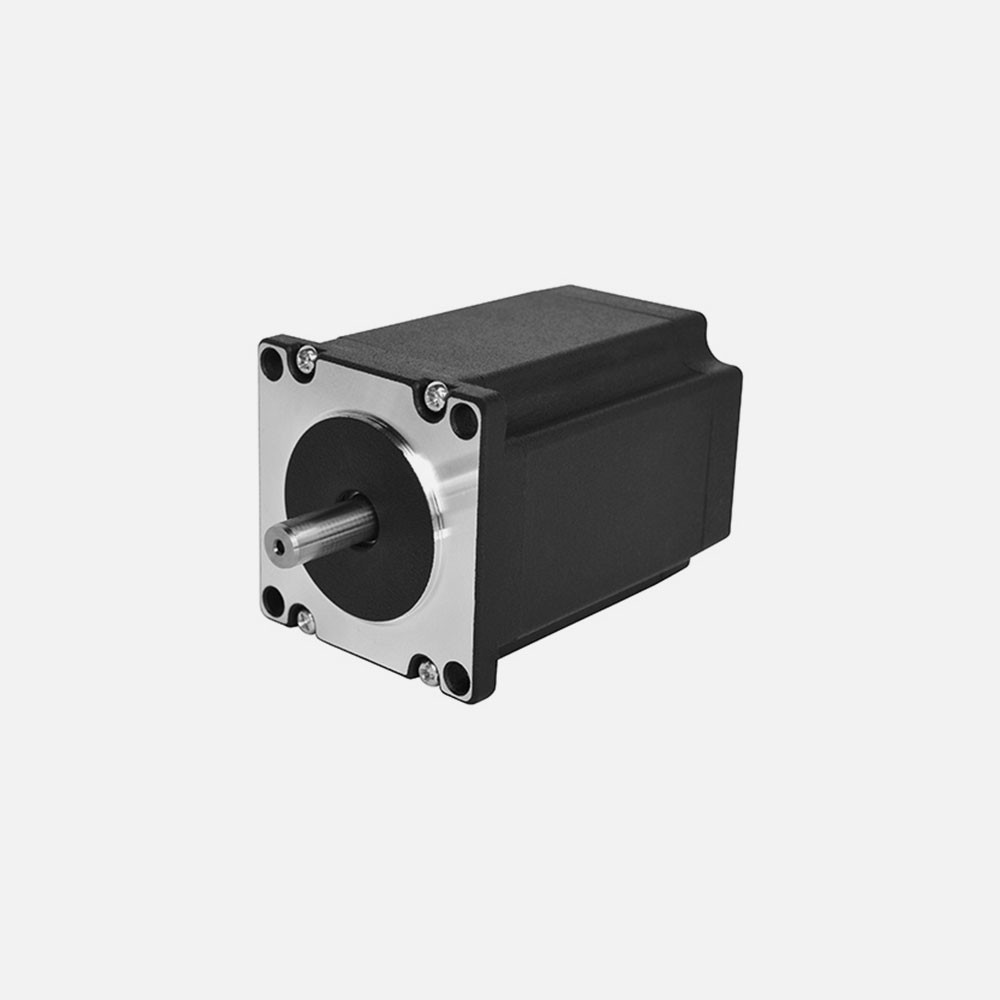

57HSM Series (0.9 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 70N ( 20mm from the flange )
Max. Axial Force: 30N
Rotation: CW
Insulation Class: B (130℃)

PERFORMANCE DATA


Part Number

Length
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
57HS041ME048X-01410.9°0.485.42.5922881300.47
57HS051MF600X-01510.9°60.885.2810042200.57
57HS056MF160X-01560.9°1.623.210042700.65
57HS076MF200X-01760.9°22415044501
57HS080ME182X-01800.9°1.822.13.82213084901.1
57HS085MF26JX-01850.9°260.51320045201.2
57HS100MF070X-011000.9°0.732.120046301.4


OUTLINE MAP
