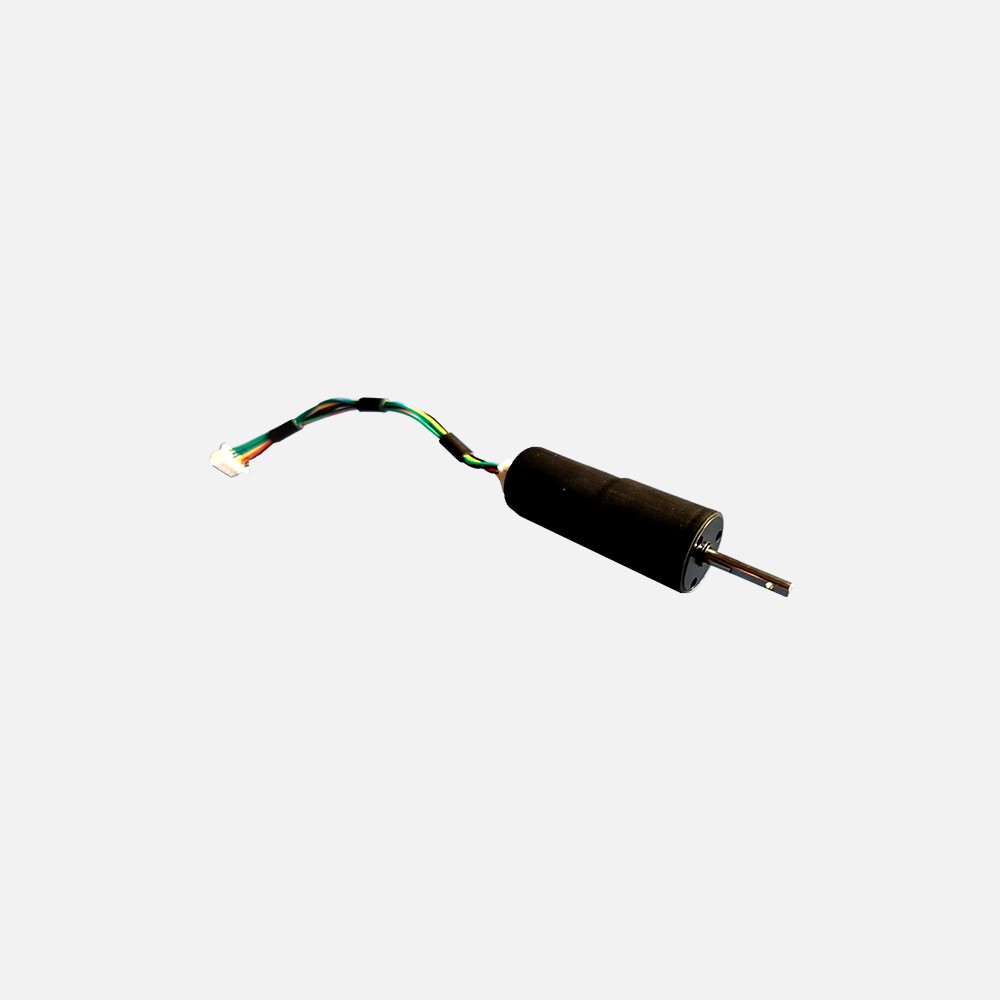

PG22L-020-01 Series

   GENERAL SPECIFICATION

Rotation: CW/CCW
Insulation class: E
Max. axial force: 10N
Max. radial force: 10N @ 5mm from the flange
End play: 0-0.15mm /300g
Radial play: 0.08Max
Dielectric Strength: 500VDC for one minute
Insulation Resistance: 100MΩ min., 500VDC
Ambient Temperature: -40℃~+50℃
Temperature Rise: 60Kmax.(rated current,2 phase on)
Inductance Accuracy: ±20%
Resistance Accuracy: ±10%
Step Angle Accuracy: ±7%(full step,no load)


PERFORMANCE DATA


Part NumberStep angel
(°)
Reduction
ratio
Number
of phase
Rated
voltage
(V DC)
Rated
current
(A)
Resistance
(Ω )
Inductance
(mH)
Pull-in
rate
(pps)
Pull-in torque
(mN.m)
Locked
rotor
torque
Weight
(Kg)
PG22L-020-01/4518/451/45250.86.45.2400160350100


OUTLINE MAP
