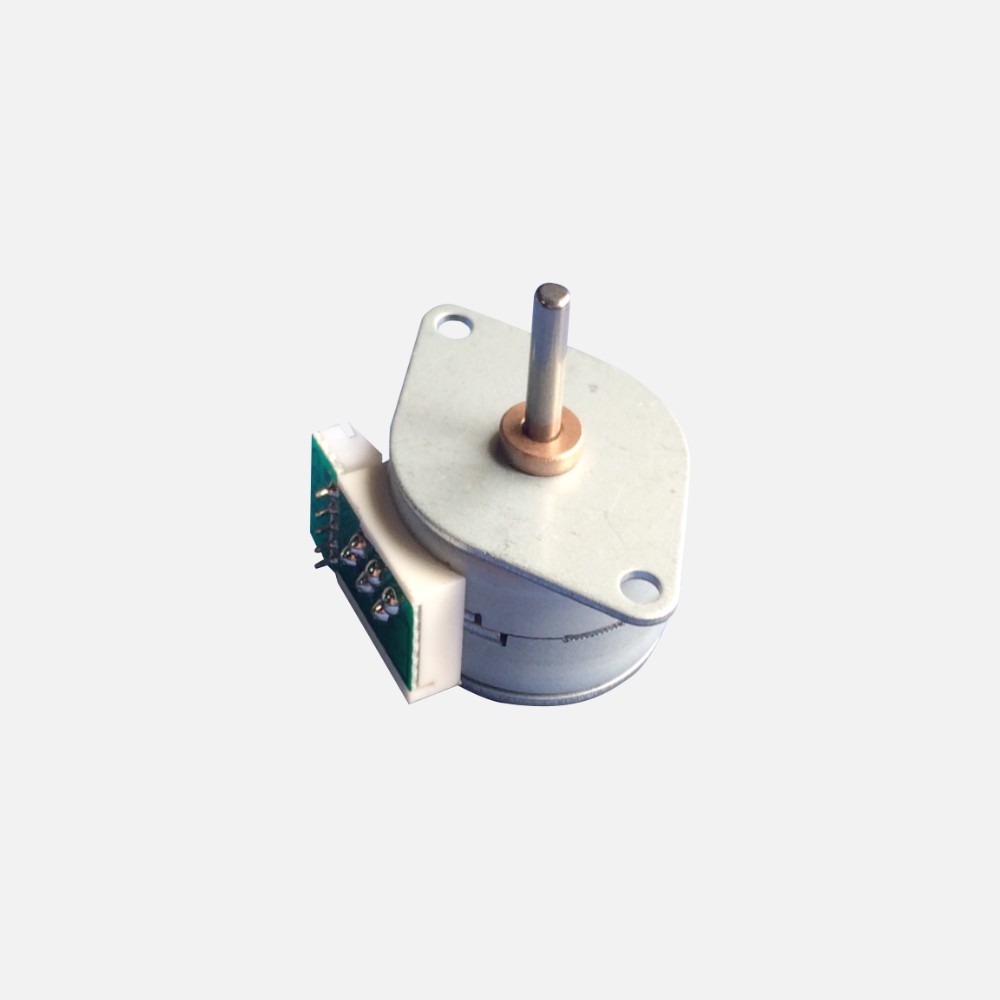

PM25S-048-01/02 Series

   GENERAL SPECIFICATION

Rotation: CW/CCW
Insulation class: E
Max. axial force: 10N
Max. radial force: 10N @ 5mm from the flange
End play: 0.05-0.55mm /300g
Radial play: 0.05
Dielectric Strength: 500VDC for one minute
Insulation Resistance: 100MΩ min., 500VDC
Ambient Temperature: -20℃~+50℃
Temperature Rise: 60Kmax.(rated current,2 phase on)
Inductance Accuracy: ±20%
Resistance Accuracy: ±10%
Step Angle Accuracy: ±7%(full step,no load)


PERFORMANCE DATA


Part NumberStep angel
(°)
Number
of phase
Rated
voltage
(V DC)
Rated
current
(A)
Resistance
(Ω )
Inductance
(mH)
Pull-in
rate
(pps)
Pull-in torque
(mN.m)
Detent
torque
(mN.m)
Holding
torque
(mN.m)
Weight
(Kg)
PM255-048-017.54120.26017.550042.51240
PM25S-048-027.52120.24504050042.51240


OUTLINE MAP
