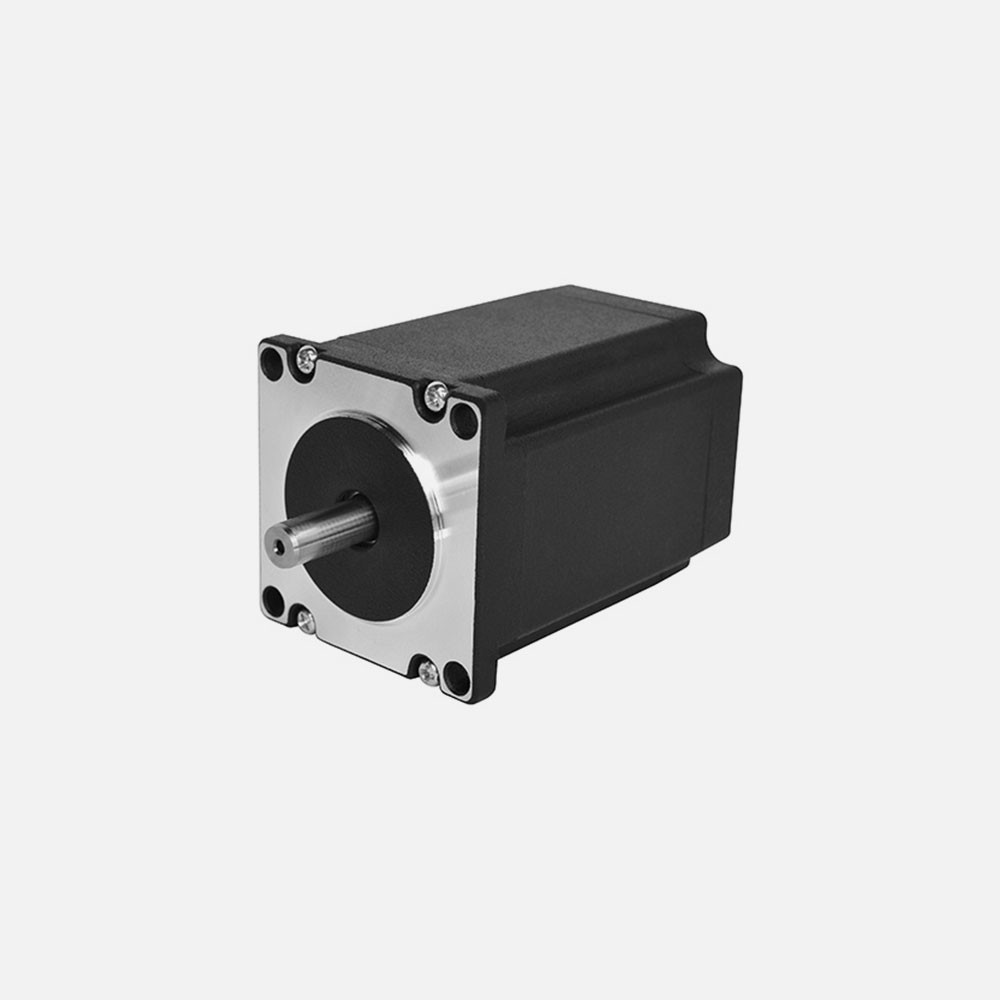

57HSD Series (1.8 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 70N ( 20mm from the flange )
Max. Axial Force: 30N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
57HS041DF052X-01411.8°0.5231.565541350.47
57HS045DF12JX-01451.8°120.67.27841800.49
57HS047DF135X-01471.8°1.352.53.37511042100.51
57HS051DF083X-01511.8°0.832.82.32410042300.57
57HS056DF100X-01561.8°12210042800.65
57HS064DF100X-01641.8°13316043400.82
57HS076DF16JX-01761.8°160.711.218044601
57HS080DE075X-01801.8°0.754318085001.1
57HS085DF070X-01851.8°0.742.822045301.2
57HS100DF070X-011001.8°0.753.523046501.4
57HS112DF080X-011121.8°0.832.425047601.5


OUTLINE MAP
