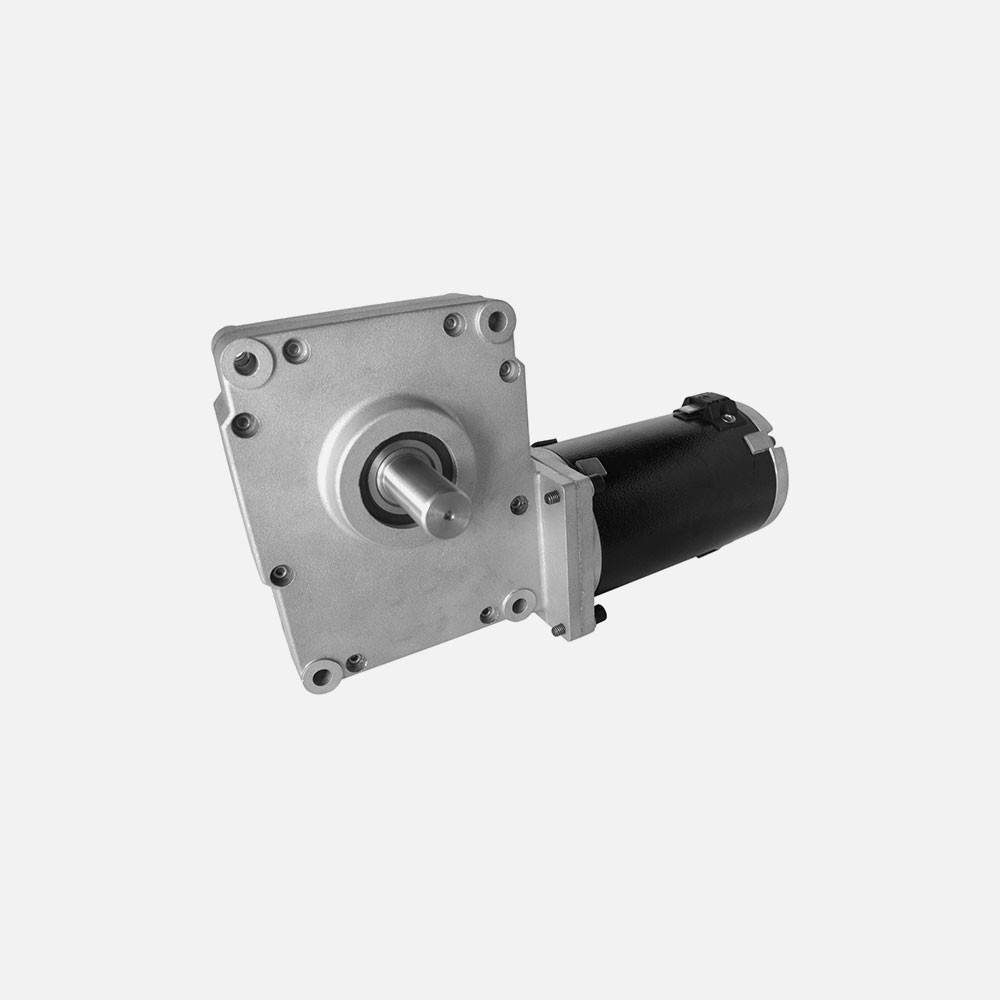

WG2 Series

   GENERAL SPECIFICATION

Gearbox Housing: Ruggedised Die-cast Aluminium
Worm Gear Material: Bronze, steel or plastic
Lubrication: Grease lubricated & sealed for life
Bearing Type: High quality ball bearings
Insulation Class: Class F (Optional: Class B)
Brush Type: Integral or removable
Ambient Operating Temperature: -20℃ to +40℃

PERFORMANCE DATA

Motor SizeWorm Wheel
Material
Gear
Ratio
Brake
Type
Output
Shaft
90ZYT,100ZYT,110ZYTDelrin, Bronze 25:1ERB, MRBCustomised
90ZYT,100ZYT,110ZYTDelrin, Bronze 30:1ERB, MRBCustomised
90ZYT,100ZYT,110ZYTDelrin, Bronze 60:1ERB, MRBCustomised
90ZYT,100ZYT,110ZYTBronze 75:1ERB, MRBCustomised


OUTLINE MAP
