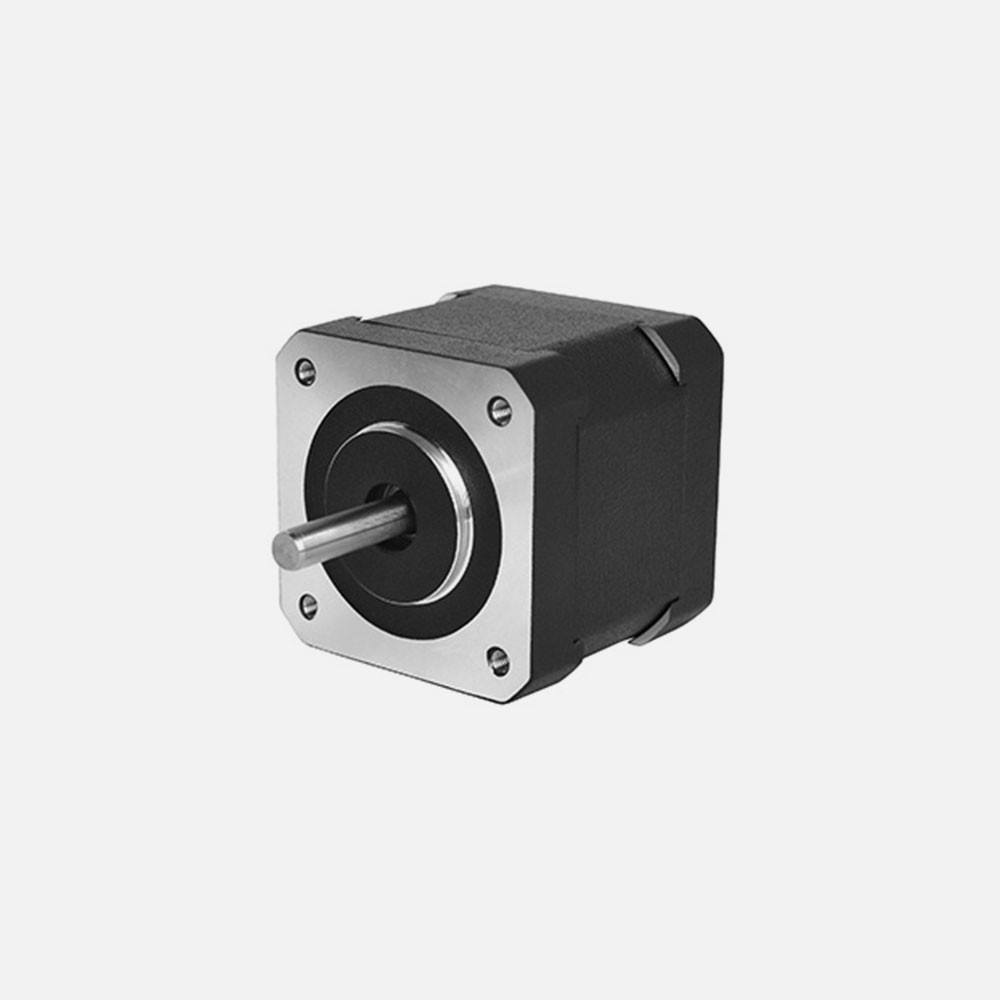

42HSM Series (0.9 degree)

   GENERAL SPECIFICATION

Step Angle Accuracy: ±5% ( full step, no load )
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80℃ max ( rated current, 2 phase on )
Ambient Temperature: -20℃ ~ +50℃
Insulation Resistance: 100MΩ min, 500VDC
Dielectric Strength: 500VAC for one minute 5mA
Shaft Radial Play: 0.02mm max ( 450g load )
Shaft Axial Play: 0.08mm max ( 450g load )
Max. Radial Force: 28N ( 20mm from the flange )
Max. Axial Force: 10N
Rotation: CW
Insulation Class: B (130℃)
PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
42HS021MF21JX-01210.9°211.33114160.13
42HS025MF25JX-01250.9°250.4812204180.15
42HS028MF800X-01280.9°80.4253.4104200.18
42HS034MS30JX-01340.9°300.412166360.25
42HS040MF300X-01400.9°31.23.6214560.3
42HS048MF100X-01480.9°12.42.4444700.38
